cPCI

Our range of cPCI products:

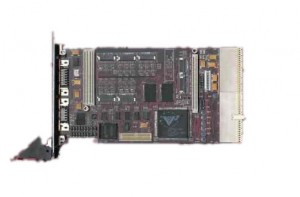

SMT300

SMT300
cPCI 3U Carrier with 1 module site; PXI compatible; V3 PCI Chip-set; SDB and 1Mbyte of shared memory on Master site The SMT300 is a single site module carrier developed to provide access to a TIM Module over the CompactPCI bus running at 33MHz with a 32-bit data bus. The card has an "on-board" JTAG ACT8990 controller....

Product Details...

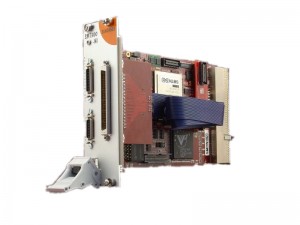

SMT300-NI

SMT300-NI
This product incorporates a double-width replacement front panel for the SMT300. The extra space to the right of the standard SMT300 connectors contains a 68-pin Tyco d-style connector that can receive a National Instruments SHC68-68 RDIO cable. Fixed to the Tyco connector is a small PCB which holds a Sundance SHB connector. This product therefore...

Product Details...

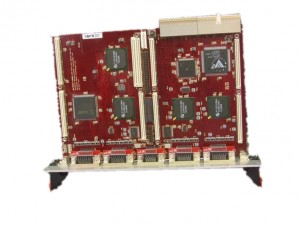

SMT300Q

SMT300Q
cPCI 6U carrier with 4 Module sites; PXI compatible; V3 PCI Chip-set; SDB and 1Mbyte of shared memory on master site   The SMT300Q is a quad site module carrier developed to provide access to a TIM Modules over the CompactPCI bus running at 33MHz with a 32-bit data bus. The card has an "on-board"...

Product Details...
