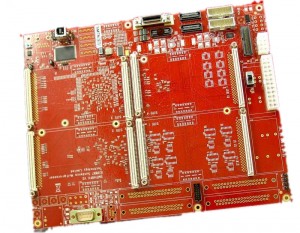

SMT144

s144

Embedded Module Carrier


The SMT144 is a reduced feature version of the SMT148-FX. The SMT144 is powered from a standard PC power supply, eliminating the need for complex power / cable solutions. Diamond 3L can be connected via the USB 2.0 port on the board, enabling the RTOS applications to run seamlessly on the carrier.


The USB communications for the SMT144 are conducted via the SMT6048

Recommended power supply for the SMT144:
Lambda NV1-453TTH-N3-I
Data sheet here:http://www.lambdaeurope.com/files/NV175%20REV%2014.1%20-%2069530.pdf

A converting power cable can be ordered from Sundance. Please contact us for more information.

s144btmFeatures

  • Four site stand alone TIM carrier.
  • Power In from a Standard ATX PC Power suplly
  • Flexible comport links
  • USB 2.0 connection
  • High Speed (over 25MHz) buffered JTAG connection.
  • 12 months warranty

Benefits

The SMT144 enables a truly portable system to be developed and run as a “Self-contained” unit. The four module sites enable a large scope for a variety of DSP, FPGA, DAC and ADC applications and computations. The Standard ATX PC Power supply connector removes the requirement for an expensive desk top PSU.

SMT144 Technical Specifications (QCF51)
