LR-D1 Long Range Radar Altimeter

Ainstein UAV Long Range Radar Altimeter LR-D1 is a low-cost, high-performance mmWave Radar altimeter designed for advanced unmanned aerial vehicles (UAVs), manned helicopters, and other GA aircraft.
Have you tried to land your plane in stormy weather? Do you fly over lakes or oceans often? Have you ever flown into an airport in the mountains? Do you have a permit to fly in cloudy conditions, but want added safety assurance?

Ainstein’s UAV Long Range Radar Altimeter LR-D1 provides accurate altitude measurement in these diverse operating environments, giving you the confidence you need to fly by knowing exactly how much space you have to manoeuvre — especially during landing.

The Ainstein UAV Long Range Radar Altimeter LR-D1 provides advanced cross-validation technology that continuously monitors incoming data, assuring the measured altitude is accurate, even in low-visibility conditions.

LR-D1 also measures vertical speed of your plane, giving you added data points for safe take-off and landing.

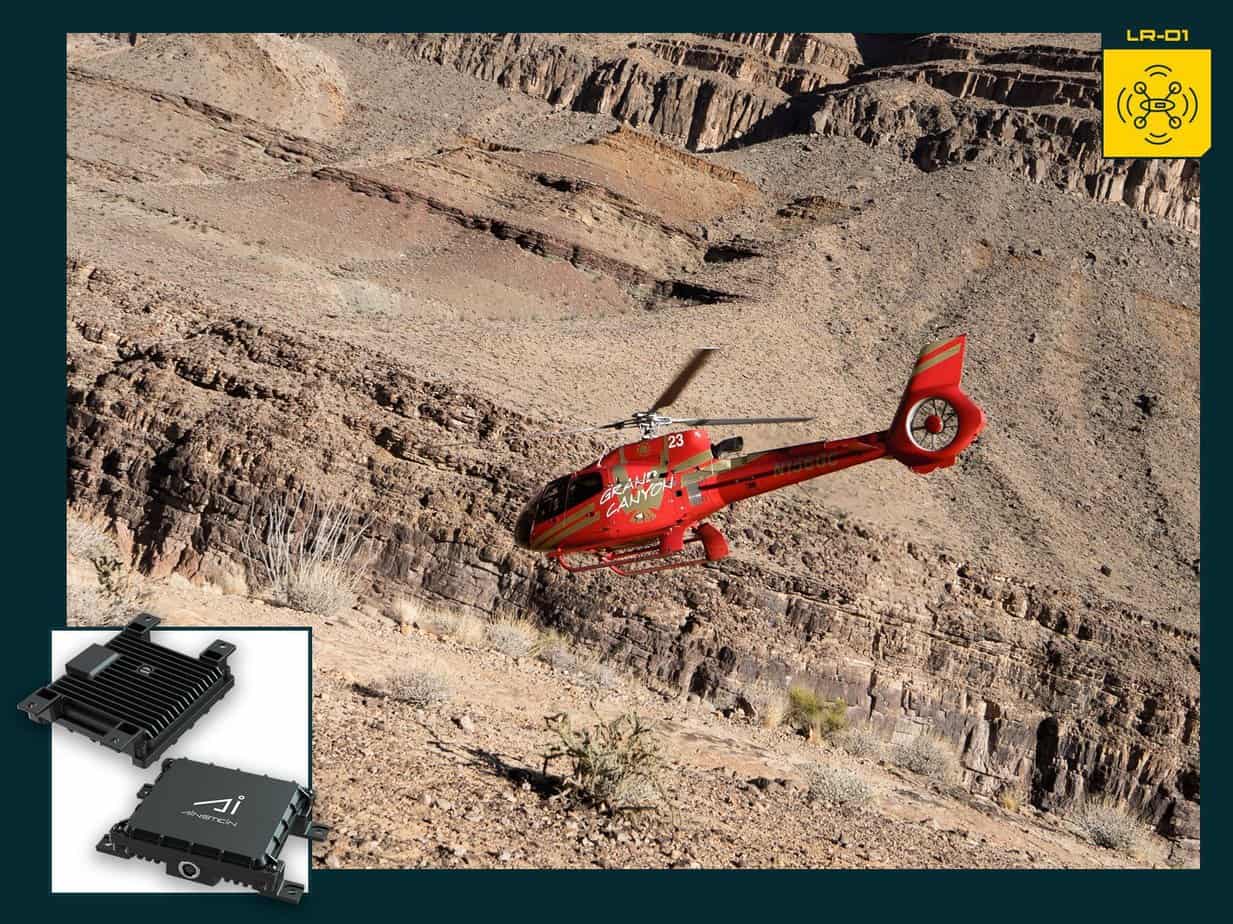

It’s perfect for experimental helicopters and pilots under training for use in safe take-off and landing; it’s also a must-have for advanced UAVs in automatic take-off and landing.


Starting Frequency – 24 GHz

Bandwidth – 250 MHz

Power Consumption – <11.00 W

Operating Voltage – 10 – 30 V

Altitude Range – ±0.7m~500m

Altitude Precision – ±0.7m

Update Rate – 40Hz

Detection Angle Range – Azimuth 43°,Elevation 30°

Maximum Velocity – up to 60m/s in elevation

Detection Velocity Range – <±45m/s

Temp. Range – -40℃~60℃

Dimensions – <112mm*102.5mm*29mm (mounting bracket is NOT included)

Weight – 300g (exclude external connector cable)

IP Rating – Built to the requirements of IP67 (Test pending)

Vibration Rating – GB/T 2423.10-2008 sine vibration 5g XYZ three axis

Shock Rating – GB/T 2423.5-1995 half sine shock 20g XYZ three axis

ESD Rating – GB/T 17626.2 8K/15K contact/air B class
