AMD Xilinx Kria K26 SoM in stock
Available now in our store and ready to ship we have a number of Kria K26 System-on-Modules. The newest path to whole application acceleration, the K26 SoM is optimized for edge vision applications requiring flexibility to adapt to changing requirements.
Designed to Enable Smart City and Smart Factory Applications
- 3X vision AI performance and 2X performance-per-watt versus competing SOMs1
- Native ROS 2 support for 5X productivity for robotics and industrial automation
Out-of-the-Box Hardware Acceleration
- Leverage pre-built accelerated applications without needing FPGA place-and-route
- Tailor AI models and application code to your requirements
Commercial grade: Operating range 0 to 85°C for smart camera, embedded vision, tracking & identification
Part Number: SM-K26-XCL2GC
| Area | Parameter | K26 |
|---|---|---|
| Form Factor | Dimensions (with heat spreader) | 77mm x 60mm x 11mm |
| Processor Unit & Acceleration | Application Processor | Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5GHz |
| Real-Time Processor | Dual-core Arm Cortex-R5F MPCore up to 600MHz | |
| Graphics Processing Unit | Mali™-400 MP2 up to 667MHz | |
| Video Codec Unit (VCU) | 1 – up to 32 streams (total resolution ≤ 4Kp60) | |
| Trusted Platform Module (TPM) | Infineon 2.0 | |
| Memory | On-Chip* | 26.6Mb On-Chip SRAM |
| On-SOM | 4GB 64-bit DDR4 (non-ECC) and 16GB eMMC | |
| Connectivity | High-Speed PS Connectivity (GTR) | PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet |
| General PS Connectivity (MIO) | 2xUSB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO | |
| Transceivers | GTH 12.5Gb/s Transceivers | 4 (PCIe Gen3 x4, SLVS-EC, HDMI 2.0, DisplayPort 1.4) |
| GTR 6Gb/s Transceivers | 4 | |
| I/O Count | PS MIO (1.8V) | 49 |
| PL High-density (HD) I/O (3.3V) | 69 | |
| PL High-performance (HP) I/O (1.8V) | 116 | |
| Programmable Logic | System Logic Cells (K) | 256 |
| DSP Slices | 1,248 | |
| Power & Thermal | Typical Power | 7.5W |
| Maximum Power** | 15W | |
| Thermal Interface | Passive (Heat spreader) | |
| Speed and Temp Grade | Commercial | -2 speed grade, low voltage and 0 to 85°C temperature range |
| Industrial | -2 speed grade, low voltage and –40 to 100°C temperature range |
Kria KV260 Basic Accessory Pack
We also have a some of the KV260 accessory packs available in the store.
Part Number: HW-BACCP01-SK-G
The KV260 Basic Accessory Pack contains all the essential accessories to get you up and running with the Kria™ KV260 Vision AI Starter Kit, enabling you to launch Xilinx’s smart camera accelerated application in less than 1 hour.

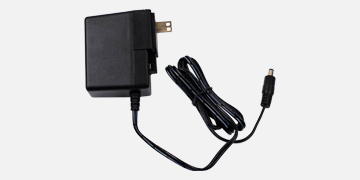

AC/DC WALL MOUNT ADAPTER 12V 36W Plugs into the DC power supply jack on the Starter Kit. Comes with interchangeable blades for major regions (North America, Europe, UK, Australia, China
Connects user end system (USB-A) to the micro-B connector on the starter kit to establish UART connection to setup the terminal
Connects the user’s networking setup to the RJ-45 connector on the Starter Kit
Connects the HDMI connector on the Starter Kit to an HDMI monitor/display
16GB MicroSD and adapter to flash the SD card image to boot or run applications
Part of the ON Semiconductor IAS family of modules. 1/3.2” CMOS Sensor (AR1335) Connects to the 2 IAS connectors of the Starter Kit
