D & P Electronic Systems products available in the store

We’ve just added an excellent range of products from D & P Electronic Systems to the Sundance store.

D & P Electronic Systems are providers of high-end FPGA Platforms. The advent of high-density, high-speed Field Programmable Gate Arrays and Digital Signal Processors allows a creative design to redefine system performance and packaging.

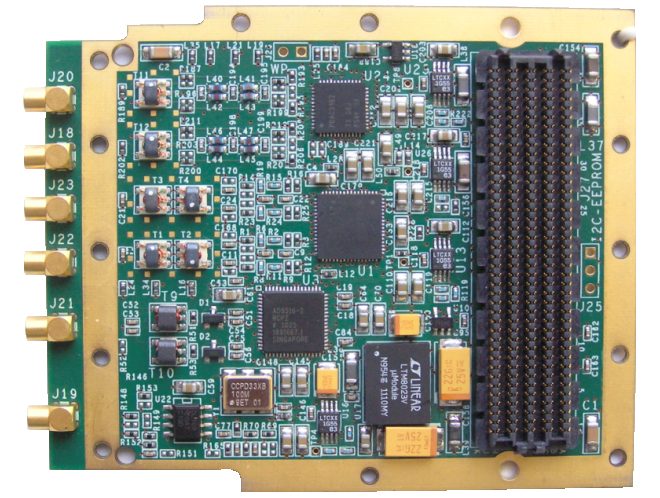

DUAL_ADC

The DUAL_ADC&DAC is a dual channel A/D and dual channel D/A FMC daughter card.

The DUAL_ADC&DAC is a dual channel A/D and dual channel D/A FMC daughter card. The card provides two 14-bit A/D channels and two 12-bit D/A channels. The ADC and DAC can be clocked by an internal clock source(OCXO) or an externally supplied sample/reference clock. There is also an external trigger input for customized sampling control.

The DUAL_ADC&DAC daughter card is mechanically and electrically compliant with FMC standard (ANSI/VITA 57.1). The board has a high-pin count connector and the front panel I/O, and it can be used in a conduction-cooled environment. The design is based on TI’s ADS62P49 dual channel 14-bit 250Msps ADC and TI’s DAC3162 dual channel 12-bit 500Msps DAC. The analogue signals are AC coupled, connecting to MMCX coax connectors on the front panel.

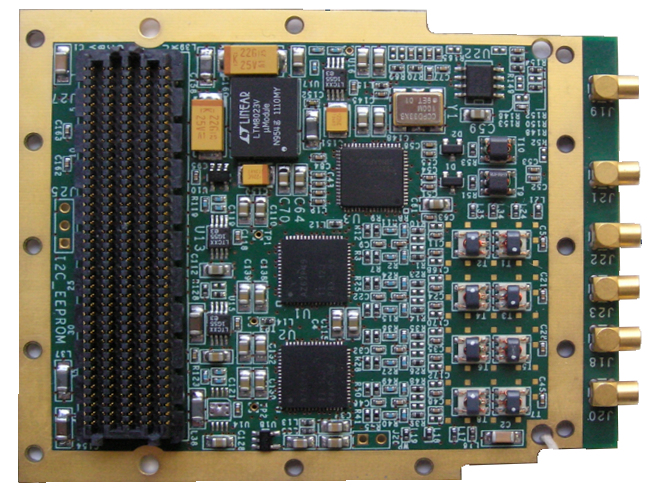

QUAD_ADC

The QUAD_ADC is a four channel A/D FMC daughter card. The card provides four 14-bit A/D channels.

The QUAD_ADC is a four channel A/D FMC daughter card. The card provides four 14-bit A/D channels. The ADC can be clocked by an internal clock source(OCXO) or an externally supplied sample/reference clock. There is also an external trigger input for customized sampling control.

The QUAD_ADC daughter card is mechanically and electrically compliant to FMC standard (ANSI/VITA 57.1). The board has a high-pin count connector, front panel I/O, and can be used in a conduction-cooled environment. The design is based on two TI’s ADS62P49 dual channel 14-bit 250Msps ADC. The analogue signals are AC coupled, connecting to MMCX coax connectors on the front panel.

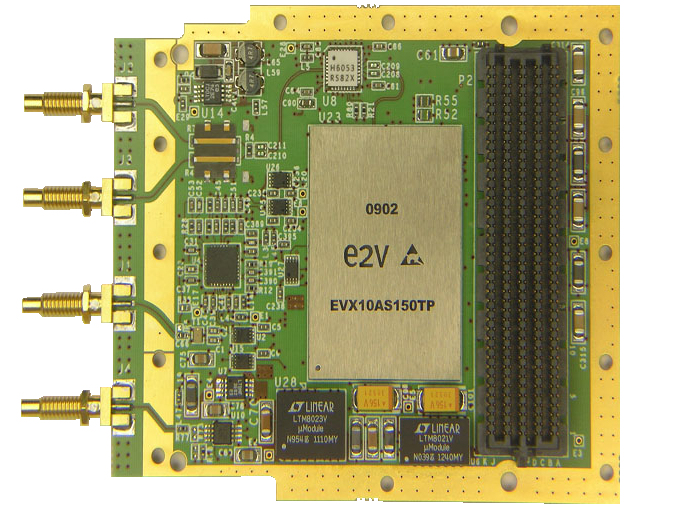

HS ADC FMC

The HS ADC FMC is an FMC daughter card with only an input channel.

D.&P. has signed an innovative acquisition solution to receive RF signal directly: ADC input bandwidth is extended using an external Track and Hold, obtaining high electrical performance (SFDR of about 50 dBc and SNR of about 40 dB up to 10 GHz in differential input mode).
The HS ADC FMC is a FMC daughter card with an only input channel. Differential and Single-Ended Input modes are available: the former has a wider bandwidth than the latter.
A 2.5 GHz clock allows to have a 1.25 GHz of Instantaneous Input Bandwidth; the sampling clock can be direct or generate through a PLL+VCO using an external reference clock.
The HS ADC FMC Board is mechanically and electrically compliant to FMC standard (ANSI/VITA 57.1).
The board has an high-pin count connector and front panel I/O and it can be used in a conduction cooled environment.
The analog signals are AC coupled and in the front panel there are a few SSMC connectors for external connection.

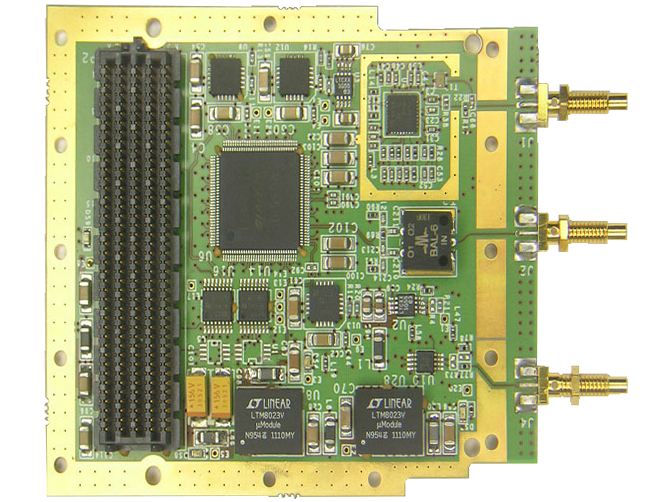

HS DAC FMC

The HS DAC FMC is an FMC daughter card with only an output channel.

D.&P. has designed a solution to synthesize RF signals using the most innovative D/A converter by Euvis. The HS DAC FMC is an FMC daughter card with only an output channel.
The sampling clock can be direct and generated through a PLL+VCO using an external reference clock or a TCXO.

The HS DAC FMC Board is mechanically and electrically compliant with FMC standards (ANSI/VITA 57.1). The board can be used in a conduction-cooled environment.
The analogue signals are AC coupled, and in the front panel there are a few SSMC connectors for external connection.

Contact us for more information
