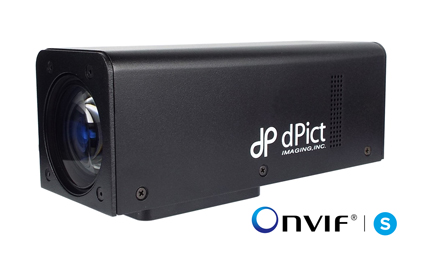

dPict Imaging has launched the DC-100, a new high-definition IP smart camera built around the innovative Sony FCB-EW9500 block and Qualcomm Snapdragon processor.

The DC-100 is a high-definition IP smart camera featuring the Sony FCB-EW9500 block and Qualcomm Snapdragon processor. It excels in low light conditions with 30x optical zoom and super image stabilization, delivering top-quality images in any setting. This Linux-based smart camera supports RTSP video streaming in HEVC (H.265) or H.264 formats, with comprehensive configuration and control services.

The camera’s 30x enhanced optical zoom ensures high resolution and minimal chromatic aberration, while the super image stabilizer suppresses vibrations and reduces blurring, making it ideal for use in harsh environments like vehicles and UAVs. The Sony STARVISTM sensor provides high sensitivity and wide dynamic range, capturing clear images in low light and managing large light intensity differences effectively.

Control and configuration of the DC-100 can be done via the Sony VISCATM protocol or remotely through the dPict Imaging Configuration Manager, which also assists with network discovery and settings configuration. The DC-100 supports ONVIF protocol for integration into existing systems and offers an optional web services API for OEM development, along with the capability to run supported third-party services on the camera itself.


Image Sensor

  • 1/1.8″ Sony STARVISTM 4M CMOS
  • Image S/N: 50 dB (Weight On)
  • Gain: Auto/Manual 0 – 50 dB- 28 Steps
  • Shutter Speed: 1/1 to 1/10000s – 22 steps
  • Exposure Control: -10.5 dB to 10.5 dB – 15 Steps
  • White Balance: Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB
  • Auto Exposure: Full Auto, Manual, Priority mode (shutter/iris), EV compensation, Spot AE, Slow AE
  • Zoom: 30x Enhanced Optical Zoom, 12x Digital Zoom, 36x Stable Zoom
  • Lens: f = 6.5 mm to 162.5 mm, F1.6 to 4.8
  • Horizontal Viewing Angle: 58.1° to 2.3°

Video Processing

  • Streaming Resolutions: 2688x1512p, 2560x1440p, 1920x1080p, and 1280x720p
  • HEVC and H.264 Encoding
  • HDMI Video Output
  • RTSP with Authentication
  • Configuration of Frame and Bit Rate

System I/O

  • 10/100/1000 Ethernet
  • Optional 802.11ac WiFi
  • VISCA Serial Interface
  • SD Memory Card Interface

System Services

  • User Authentication and Configuration
  • Web Server with Video
  • VISCA Server
  • ONVIF Server
  • NTP Time Server
  • Deployment/Upgrade Server


  • Device Discovery Application
  • HTTP Web Configuration Manager
  • Available Web Services API

Physical and Environmental

  • Size: 185mm x 68mm x 70mm
  • Weight: 860g (with mounting plate)
  • Power Requirement: 12V
  • Power Consumption: 13W
  • Operating temperature: -5° C to 60° C
  • Storage temperature: -20° C to 60° C
  • Operating humidity: 20% to 80% non-condensing
  • Storage humidity: 20% to 95% non-condensing

DC-100 Features

  • 1/1.8″ Sony STARVISTM 4M CMOS Sensor
  • Integrated Sony FCB-EW9500 Block
  • Full Linux System with Processing
  • HEVC and H.264 Video Streaming
  • 10/100/1000 Ethernet
  • RTSP with Authentication
  • Sony VISCA Serial Control
  • 30x Enhanced Optical Zoom
  • Super Image Stabilizer
  • High Sensitivity for Low Light Applications
  • Wide Dynamic Range
  • Noise Reduction
  • Spot Focus, Exposure and White Balance
  • Visibility Enhancer
  • IR Correction
  • Flicker Detection and Reduction
  • 7 Blade IRIS for Flare Reduction
  • HDMI Preview Output
  • Integrated Micro SD Card for Recording
  • Serial/VISCA Camera Control over IP
  • ONVIF S Compliant
  • Optional 802.11ac WiFi
  • Web Services API for OEM Configuration
  • Support for 3rd-Party Application Integration
