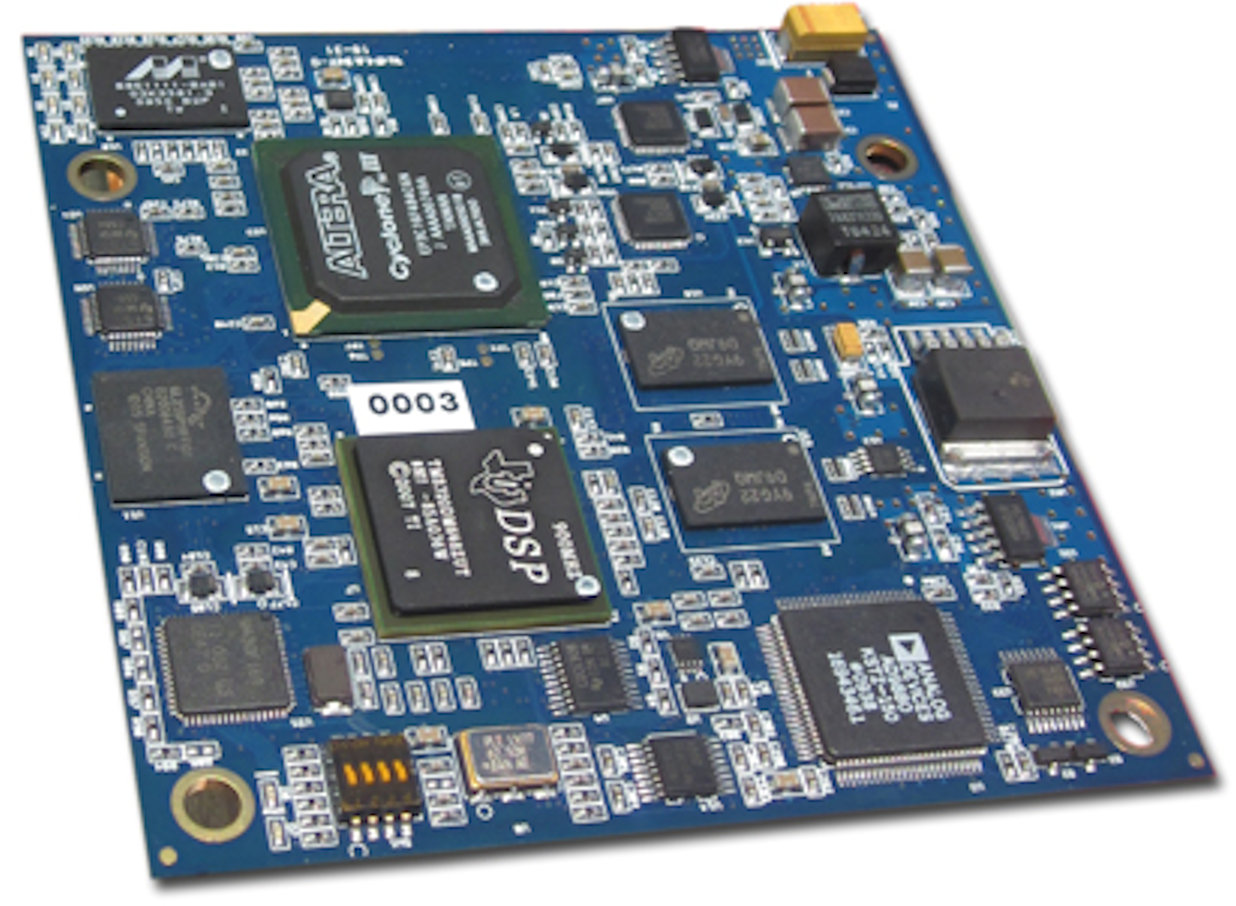

nVision GX2 from dPict Imaging the next-generation multi-format intelligent video acquisition device for mobile or remote capture. nVision GX2 digitizes and transmits high-quality, full-resolution video over TCP/IP networks in real time. nVision’s compact size allows it to be installed anywhere a network connection exists. Designed with a powerful TI DM648 video processor, nVision GX2 is perfect for video analysis applications.

nVision GX2 Features

  • Integrated Texas Instruments DM648 900 MHz DSP
  • SD and HDTV video capture support
  • HDTV input support up to 1080i
  • HDMI or DVI input support
  • Square pixel or ITU.BT.601 standard definition digitizing formats
  • Dual simultaneous composite video inputs
  • 10/100/1000 Ethernet
  • 256 MB DDR2 Frame Buffer for reliable image transfer
  • On-board FLASH memory for calibration settings configuration, or web interface
  • Dual composite video outputs
  • HDTV YPrPb and VGA RGB output
  • General purpose I/O triggers
  • Dual UART serial communications
  • SD memory interface
  • Optional nVision I/O carrier board for easy access to all video, communications, and trigger I/O
  • nVision API supports Texas Instruments Code Composer Studio for embedded application development.

nVision GX2 Description

Networked Convenience

nVision GX2 is a fully integrated device for remote video streaming over Ethernet. Its compact size allows it to be installed anywhere a network connection exists, whether a laptop or server.

Digital Video Processor

nVision GX2 is equipped with a powerful Texas Instruments DM648 900MHz Video Processor, making it perfect for video analytics applications. Image processing functions such as image enhancement, stabilization, advanced motion detection, noise filtering, frame de-interlacing, image rotation, video overlay, or license plate recognition can be accomplished.

High-Quality HDTV and SD Video Capture

nVision GX2 enhanced video front end supports multiple video input standards and types. Its high-definition video interface supports HDTV from HDMI or DVI inputs up to 1080p as well as 20 LVDS video pairs. A dual standard definition video interface allows simultaneous viewing from two independent composite NTSC or PAL video camera inputs.

Video Output

For analog video monitors, nVision GX2 can decode incoming or networked digital video streams and convert the digital video for output on it’s two video output ports. Outputs can be either standard or HDTV. A programmable overlay can be applied to the output video for on-screen display.

Extensive Control

nVision GX2 contains extensive camera and I/O control to make application development simple. By utilizing an integrated microcontroller and 256 MB frame buffer, nVision GX2 provides reliable image transfer to prevent dropped images. nVision GX2 also supplies a dual UART serial interface to control cameras and programmable general-purpose I/O triggers for event notification. nVision GX2 is also available with up to 32 MB of flash memory for boot load options, presets, or integrated web interface.

nVision API and Developers Kit

The nVision API is a comprehensive board support package that comes complete with drivers and samples and is compatible with TI’s Code Composer Studio. For ease in application development, the nVision Developer’s Kit also supplies an nVision GX2 I/O Carrier board (pictured below) and power supply. The nVision GX2 I/O Carrier board provides for standard connections for video, communications, and trigger I/O.

Specifications

Network

  • Ethernet 10/100/1000 Base-T

HD Video Acquisition

  • HDTV standard support up to 1080p
  • DVI and HDMI input support
  • RGB or YPrPb analog input support
  • Up to 150 MHz acquisition rate
  • 16 LVDS input pairs

SD Video Acquisition

  • Dual composite video inputs
  • NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60), and SECAM (B, D, G, K, K1, L) support
  • Color or monochrome support
  • Square pixel and ITU.BT.601 resolution support
  • Software programmable control of gain, offset, hue, saturation, and sharpness
  • 32 MB Flash memory for storing configuration and calibration settings

Video Acquisition

  • Real-time, full-resolution video acquisition channel
  • 256 MB DDR2 frame buffer for reliable transfer
  • Smooth interpolated video scaling to randomly sized windows
  • Hardware overlay of graphics over video
  • RGB 32/24/16/15/8 and YUV 4:2:2 pixel formats

Video Output

  • Two Composite video outputs with OSD
  • HDTV YPrPb output
  • VGA RGB output

I/O Control

  • 7 General-purpose I/O triggers
  • Triggers programmable as input or output
  • Dual UART serial interface
  • SD memory interface

Physical and Environmental

  • 3.432″ (length) x 3.432″ (width)
  • Samtec 0.4mm Pitch SMT Micro Connectors
  • Optional nVision I/O Carrier board – 6 BNC, DVI, HDMI, 2 x DB-9 male, RJ-45 Ethernet socket, SD interface, and 2.5 mm power plug
  • Operating temperature: 0° C to 70° C
  • Relative humidity: 5% up to 95% non-condensing

Ordering Information

  • nVision GX2: 10533-001
  • nVision GX2 Developers Kit: 90013
  • nVision GX2 I/O Carrier Board: 99504
  • nVision GX2 Power Supply: 99101
  • dVeloper Foundation SDK for nVision GX2: 90014
