EMC²-SoM3-100 – IN STOCK NOW​

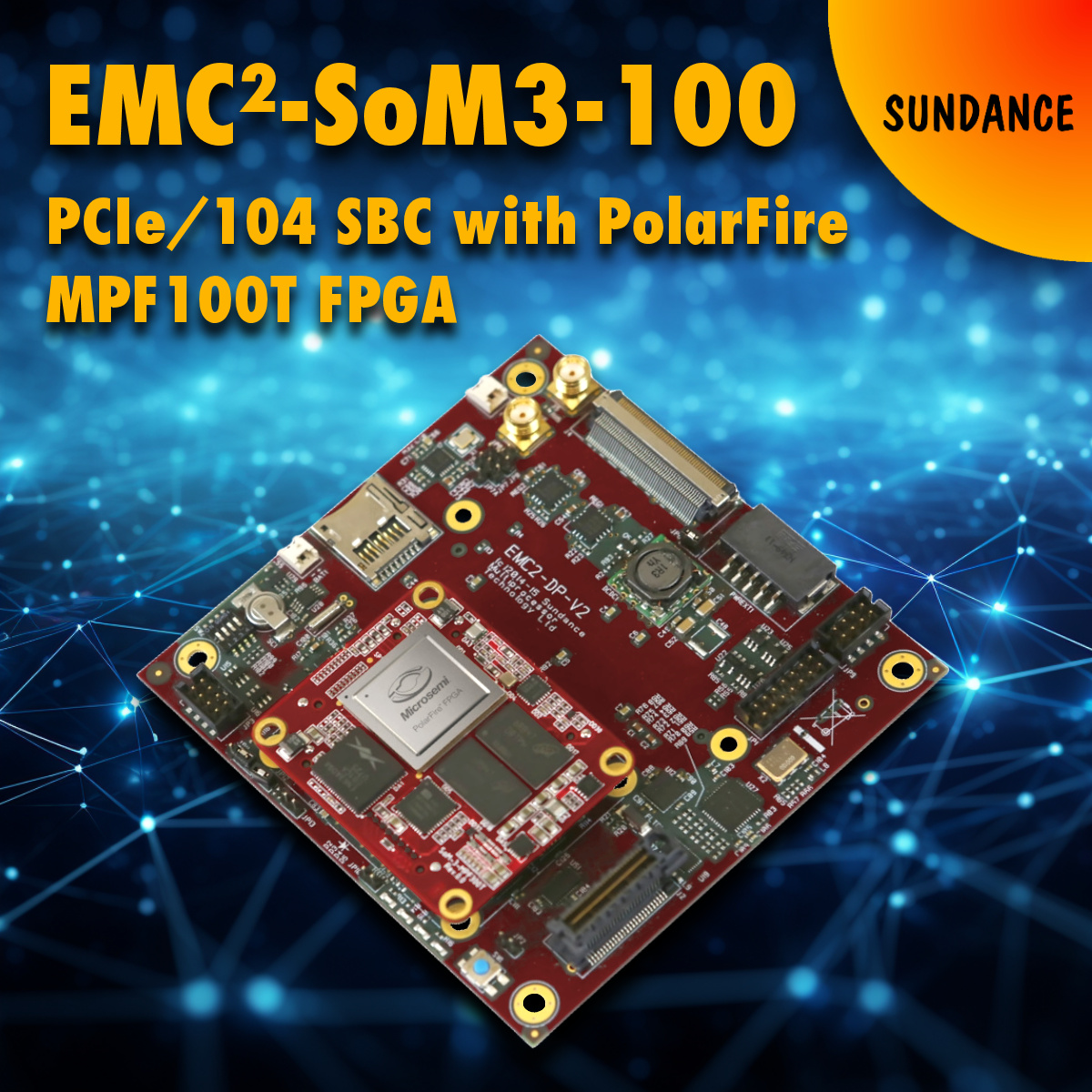

A PCIe/104 OneBank™ SBC with a PolarFire MPF100 FPGA

We have a number of these units in stock now, contact us for more info.

The PCIe/104 OneBank™ design enables the EMC²-SoM3-100 to be added to robust and rugged installations for various commercial, medical, industrial and military uses and to enable more versatility, the EMC²-SoM3-100 also incorporates a VITA57.1 FMC™ LPC connector opening up a range of extra possibilities and expansion options.

  • PCIe/104 OneBank I/O board, via a Sundance 40mm x 50 mm SoM3
  • PolarFire FPGA for I/O Interface and processing
  • Integrated 1Gb Ethernet and optional SATA-2 IP-Core for storage.
  • PCI Express Gen 2 compatible and integrated PCI Express switch
  • An infinite number of EMC² can be stacked for large I/O solutions
  • Expandable with any VITA57.1 FMC I/O Module for more flexibility
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector

The SoM3-MPF100T is a small footprint System On Module (SoM) with 40x50mm dimensions. It has a low-power, highly secure FPGA from the PolarFire family from Microsemi. It has 4GB of DDR4 memory, Ethernet PHY, and FLASH. This SoM is ideal for complex hardware designs. This module provides many IOs and four high-speed transceivers.

Sundance Store page

Features:

  • PolarFire FPGA MPFT100-1FCVG484E
    • Enhanced Operation Temperature: 0°C ~ 100°C (TJ)
      • Optional: -40°C ~ 100°C (TJ)
    • 109K Logic Elements
    • 484 Pin Packages, with up to 284 I/O pins
    • Four high-speed serial I/O (XCVR @ 12.7GBPS)
  • Rugged for shock and high-vibration
  • Plug-on module with 2 x 100-pin and 1 x 60-pin high-speed hermaphroditic strips
  • 4 GBytes DDR4 SDRAM, Two 1024Mx16 devices to give 32-bit width-bus.
  • 256Mb SPI boot Flash
  • Programmable Clock PLL clock generator (SI5338A)
  • Gigabit Ethernet transceiver PHY (KSZ9031RNXIC)
  • 3.3VDC compatible I/O, 5VDC supply only
  • All DC/DC power supplies on board.
  • Evenly spread supply pins for good signal integrity.
  • 40 mm x 50 mm standard SoM form factor for upgrades

We have units in stock, ready to ship.

BUY NOW
