Trenz Electronic at the FPGA Conference Europe
Munich, Germany. 5 – 7 July 2022
Trenz Electronic will be exhibiting at the FPGA Conference Europe. If you’re attending, be sure to pay them a visit. Amongst other products, you’ll be able to see the new AM0010 MPSoC module as well as the CRUVI modules, kits and adapters.
CRUVI Modules, Kits and Adapter
You can find all CRUVI products in the shop category CRUVI
CRUVI Carrier board with 3 CRUVI slots (3 x HS, 1 x LS)
TEB0707-02 – This board accepts Trenz 4×5 SoM and converts into a CRUVI compatible host carrier board. Three CRUVI slots are provided with HS connector support. One slot supports also LS.
- 3 x High Speed and 1 x Low Speed CRUVI B2B connector
- Intel MAX 10 FPGA as system controller
- Micro USB2.0 socket with FTDI to JTAG/UART solution
- RJ45 LAN socket
- USB A socket
- microSD card socket
- user LEDs, push buttons and DIP switches
CRUVI kits

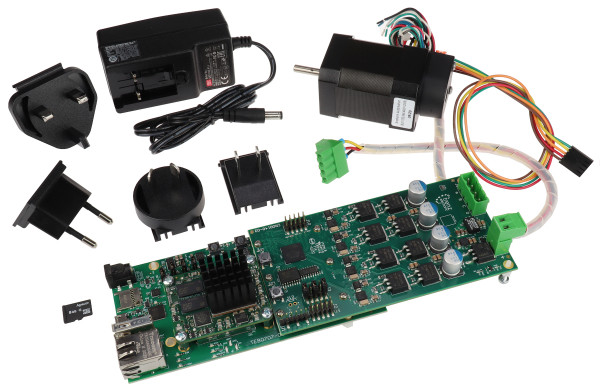

Every motor control development kit includes a CRUVI motor driver module, a carrier TEB0707-02 and a Trenz Electronic SoC/MPSoC module including heat sink. Supplied with a universal plug-in power supply with four adapters, a DC motor including cable for CRUVI CR00140 and an 8 GB microSD card.
- Motor Control Development Kit with Xilinx Zynq 7020-1C SoC Module, CR00140-02-K1A
- Motor Control Development Kit with Xilinx Zynq UltraScale+ ZU2CG-1E MPSoC Module CR00140-02-K0A

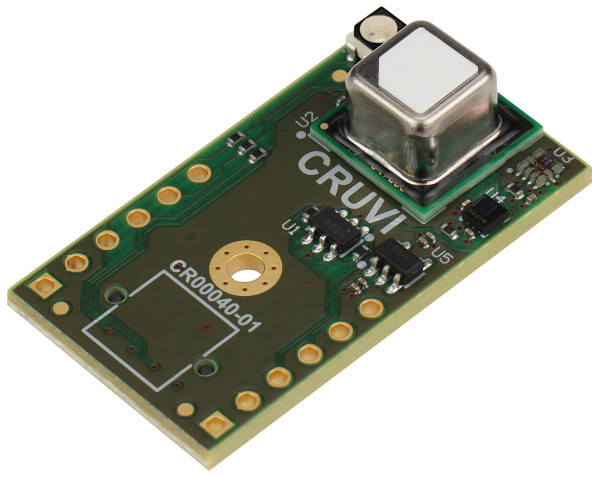

CRUVI module with CO2 sensor SCD40 CR00040-01-40
CRUVI module with CO2 sensor SCD41 CR00040-01-41
The CRUVI module is available without CO2 sensor: CR00040-01-0
CRUVI motor driver module CR00140-02, Mezzanine card, supports motors with up to 4 phases up to 40V
CRUVI Low Speed to Pmod Adapter CR00005-01-1
Pmod to CRUVI Low Speed Host Slot CR00025-01

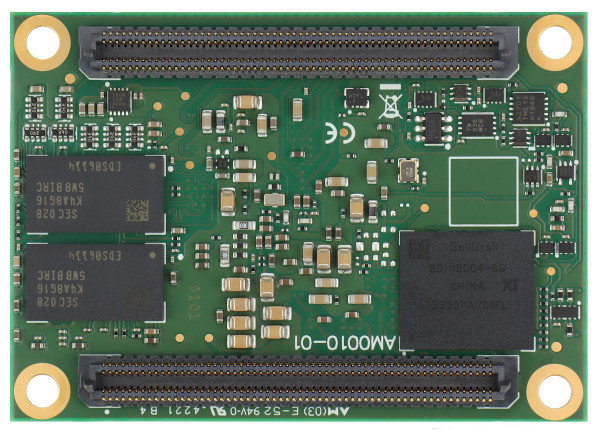

NEW AM0010 – MPSoC Module with Xilinx Zynq UltraScale+ ZU2CG-1E
The Trenz Electronic AM0010-01-2AE21MA is an industrial-grade MPSoC module integrating a Xilinx Zynq UltraScale+ ZU2CG, 4 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.
This is the prototype configuration of AM0010, but there are still many configuration options available that you can customize to meet your specific needs.
All this on a tiny footprint of 4 x 5.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.
All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Key Features
- Xilinx Zynq UltraScale+ XCZU2CG-1SFVC784E
- ZU2CG, 784 Pin-Package
- Application Processor: Dual-core Arm Cortex-A53 MPCore up to 1.3 GHz
- Real-Time Processor: Dual-core Arm Cortex-R5 MPCore up to 533 MHz
- 2 x B2B Connectors ADM6 (4 x 60 Pins)
- 4 serielle PS GTR Transceiver
- 204 SE / 102 DIFF GPIOs
- 4 GByte DDR4 SDRAM ECC (PS)
- 2 x 64 MByte QSPI Flash
- Gigabit Ethernet transceiver
- 8 GByte e.MMC
- 8 MByte HyperRAM
- USB2.0 ULPI transceiver
- OPTIGA Trust M (Security controller)
- Serial EEPROM with EUI-48 Node Identity
- CryptoAuthentication Device
- Rugged for shock and high vibration
- Dimension: 4 x 5.6 cm
Trenz Electroninc NEW products for 2022
Sundance is the UK distributor for Trenz Electronic products, please browse the catalogue below and get in touch with us if you require anything.
Fullscreen Mode
Download the full Trenz Electronic catalogue here.
