K.K.ROCKY FMC ADC/DAC Board (8ch/16ch)
The RFM-ADACF0816D1/S1MH-1 is a versatile ADC/DAC FMC module. This board is a general-purpose AD/DA board that operates on ANSI/VITA57.1 compliant Mezzanine Card (FMC) High Pin Count (HPC) sites. It is in stock and available to order now.
It is one of the many K.K.Rocky FMC boards available on the Sundance store,

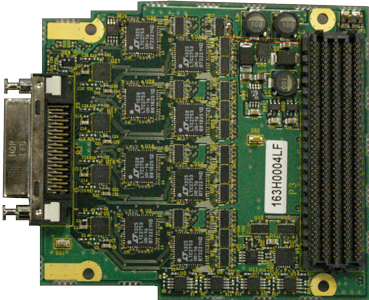

RFM-ADACF0816D1/S1MH-1
By mounting this board on a carrier board with an FMC site, it is possible to build a flexible system according to the required application.
- Type: A/D/D/A mixed board
- Resolution: AD 12bit/DA 16bit
- Number of channels: AD 8ch / DA 16ch
- Sampling: AD 1Msps@1ch (125Ksps@8ch) / DA 2Msps
- FMC: One LPC is also implemented for the HPC stack

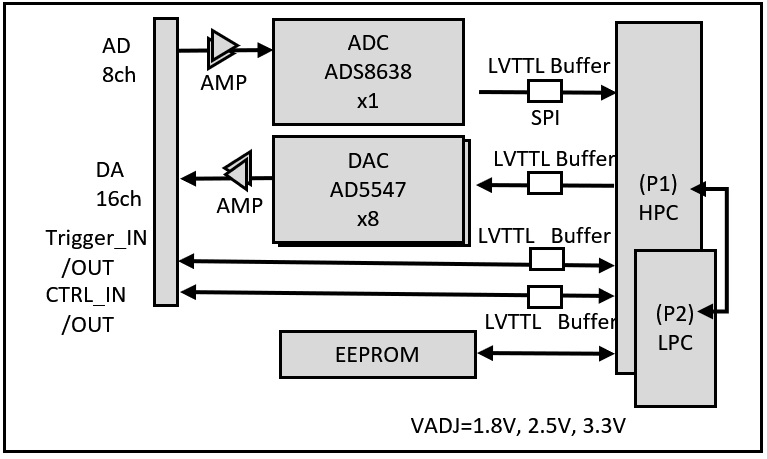

Block Diagram
