Competing in the 2021 Low-Power Computer Vision Challenges?
Receive a FREE Lynsyn Lite to assist you.

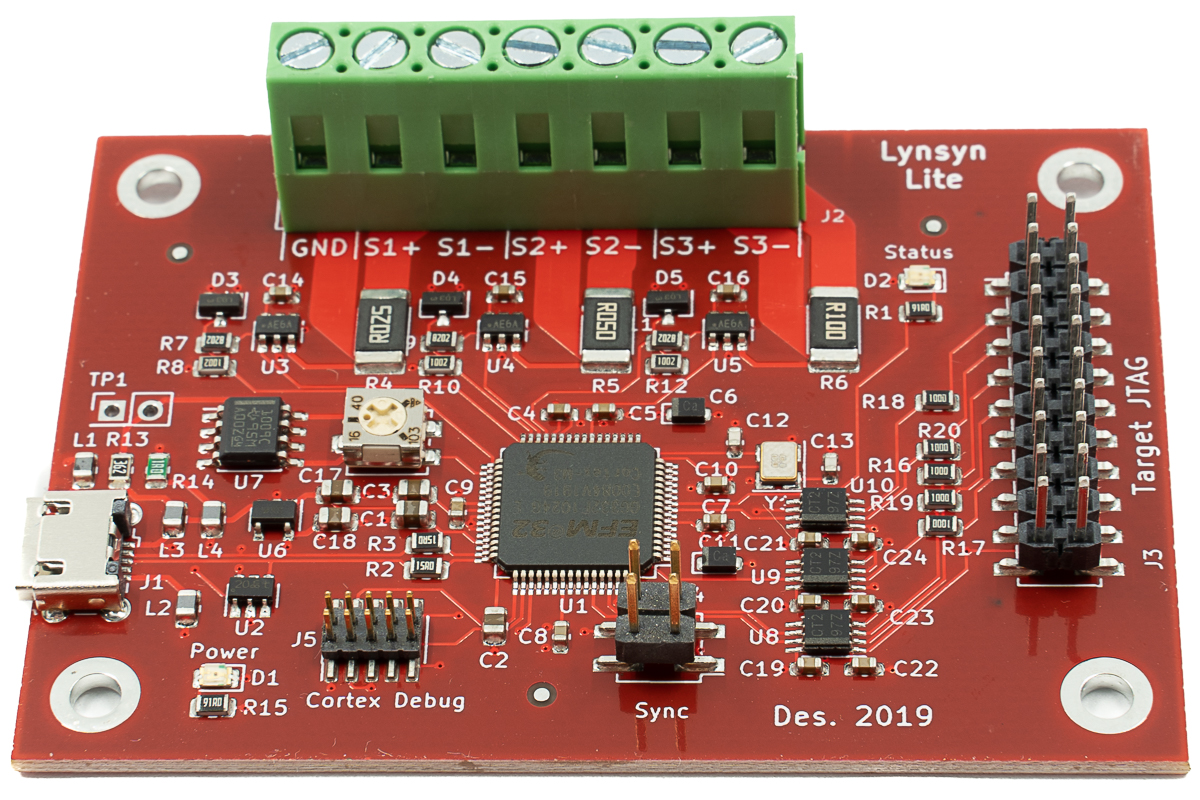

- Using the Lynsyn Lite to measure the power usage of each section of source code in a system is simple.
- 3 sensors that measure both current and voltage.
- Correlates power measurements with source code by sampling program counters over JTAG
- Up to 10kHz sampling frequency.
- JTAG sampling supports ARM Cortex A cores (currently A9, A53 and A57).
- Can be used as a remotely controlled current/voltage meter.
- Can be used as a generic USB JTAG programmer with Xilinx Vivado tools.
- Includes open source software that samples and visualises the results.
The software and all information on using it with the Lynsyn Lite can be found in the Lynsyn wiki here.
