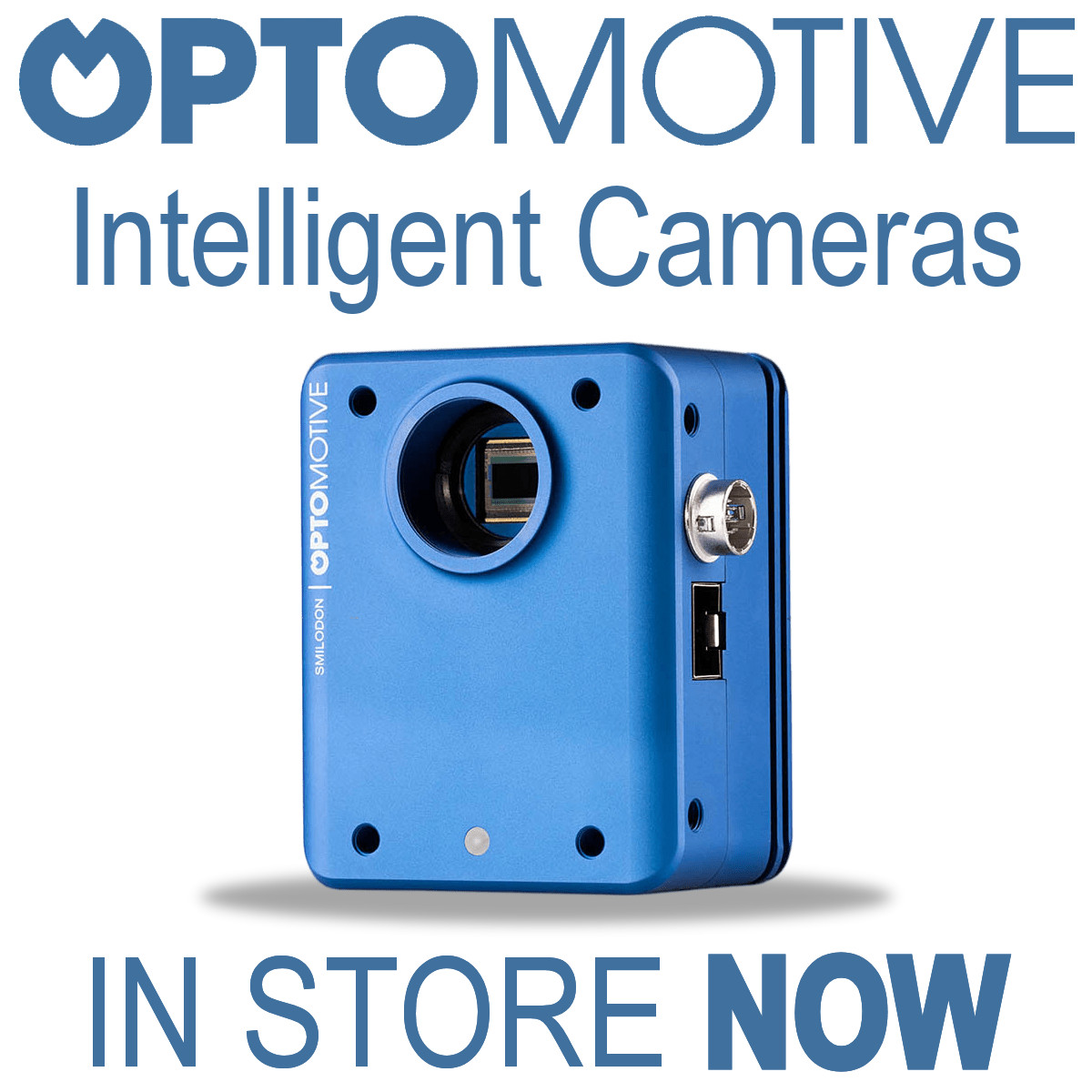

OptoMotive Cameras available in the Sundance Store
We’re very excited to have added OptoMotive’s excellent range of intelligent cameras to our portfolio of imaging products. They have large FPGAs built in which enables very high performance and huge customisation.
They cover a wide array of uses with their flexible architecture. The user has full flexibility to select cameras with housing (regular and IP67) or board-level cameras. The camera sensors can be selected depending on resolution and spectral options to exactly match the user’s needs. There are also singlehead or multi-head solutions available in our range of options. Thanks to built-in large FPGAs the cameras are innovative components for demanding real-time machine vision in industrial and other applications.
OptoMotive’s standard assortment of modular high-speed intelligent cameras consists of the following camera families:
OptoMotive Camera Families
SMILODON
The Smilodon EVO 10G is a global shutter industrial camera based on Xilinx Kria SoM and Gpixel GMAX 5M to 25M high-speed monochrome, colour or near IR imaging sensor – 3D camera with built-in Peak Detection, or with integrated BLOB Detection or RLE Compression. 1G or 10G SFP+ interface.
Use
3D Camera
BLOB detection
RLE compression
Resolution
5M-25M
Spectral Option
monochrome
colour
Interface
1G or 10G SFP+
SPINOSAURUS EVO
The Spinosaurus EVO is a highly customizable and user-programmable SoC FPGA based high-speed camera with integrated Sony Pregius Gen3 0.5M to 7.1M high-speed monochrome or colour imaging sensors – 3D camera with built-in Peak Detection or with integrated BLOB Detection or RLE Compression. It has a 10G SFP+ interface.
Use
3D Camera
BLOB detection
RLE compression
Resolution
0.5M-7.1M
Spectral Option
monochrome
colour
Interface
10G SFP+
SPINOSAURUS LX EVO
The Spinosaurus LX EVO is a highly customizable and user-programmable SoC FPGA based high-speed camera with the fastest imaging sensor in our line-up Luxima LUX2810 2.8M monochrome or colour imaging sensor – 3D camera with built-in Peak Detection, or with integrated BLOB Detection or RLE Compression. It has a 10G SFP+ interface.
Use
3D Camera
BLOB detection
RLE compression
Resolution
2.8M
Spectral Option
monochrome
colour
Interface
10G SFP+
T-REX EVO
The T-REX EVO is an entry level user-programmable SoC FPGA based high-speed smart camera with integrated AMS CMV2000/4000 monochrome, colour or near IR 2M to 4M imaging sensors – 3D Camera with built-in Peak Detection, or with integrated BLOB Detection or RLE Compression. It has a 1G PoE interface.
Use
3D Camera
BLOB detection
RLE compression
Resolution
2M-4M
Spectral Option
monochrome
colour
near-IR
Interface
1G PoE
VELOCIRAPTOR HS
The Velociraptor HS is an entry level highspeed camera for long-term high frame rate video recording with integrated AMS CMV2000/4000 monochrome or colour 2M to 4M imaging sensors. It has a 1G PoE interface. The camera has on-board JPEG compression. It was developed to fill the gap in the market between standard industrial cameras and high-speed cameras.
Use
High-Speed Video Recording
Resolution
2M-4M
Spectral Option
monochrome
colour
near-IR
Interface
1G PoE
