NOT FOR NEW DESIGNS

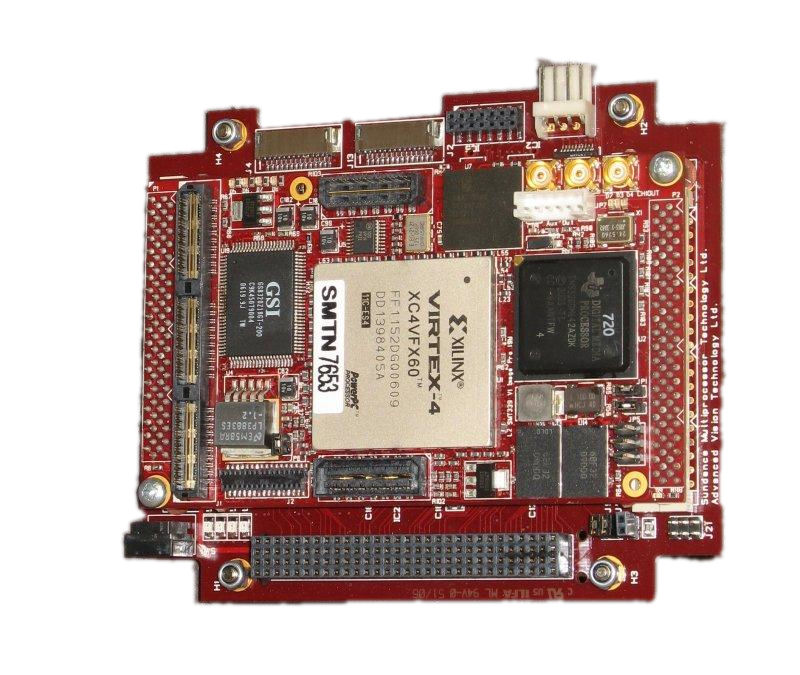

PCI-104 Carrier (SMT130) and a TMS320DM642 Advanced Imaging Module (SMT339)
The SMT239 is made up of the SMT130 (A PCI104 single site TIM carrier) and a SMT339 (TMS320DM642 @ 720 MHz; Xilinx Virtex 4 XC4VFX60 FPGA). This combination gives high performance multimedia processing in a compact form factor.
The SMT130 is a single site module carrier developed to provide access to a TIM module over the PCI-104 PCI bus.
Data transfers of 50-100Mbytes per second can be achieved to and from the Global Bus when accessing the SRAM and PCI Bridge, allowing fast data transfers.
The card has an on-board JTAG controller which is software compatible with the XDS-510. This allows Code Composer studio and 3L applications to be used to debug/upload software to a DSP TIM.
The SMT339 is a dedicated second generation high speed image processing module for use in a wide range of image analysis systems.
The module can be plugged into a standard TIM single width slot and can be accessed by either a standard ComPort, or Rocket Serial Link (RSL) Interface. The module can also operate in a “stand-alone” mode for use in SMART camera and SMART monitor applications.
The image processing engine is based upon the ‘Texas Instruments’ TMS320DM642 Video Digital Signal Processor. It is fully software compatible with C64x using Code Composer Studio.
It supports Windows® and Linux environments and includes full integration and compatibility with The MathWorks®simulation and DSP/VHDL code generation tools via Sundance SMT6040 Toolkit (not included).
