NOT FOR NEW DESIGNS
PCI-104 Carrier (SMT130) and a 4x C6416 @ 600MHz, 1x Virtex II XC2V2000, 2x SHB Interface, 4 ComPorts and Global Bus (SMT361Q)

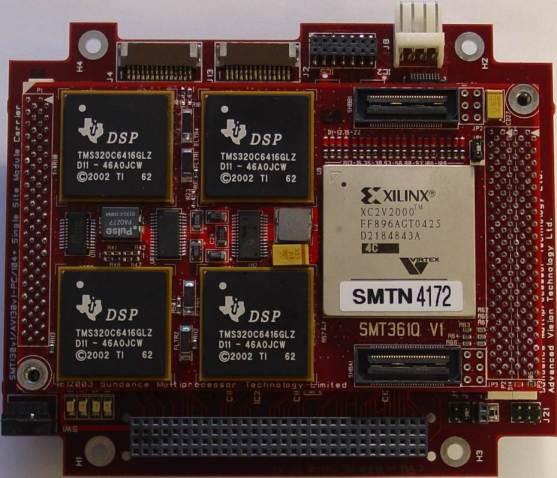

The SMT261Q is made up of the SMT130 (a PCI-104 single site TIM specification carrier) and a SMT361Q (A 4x C6416 @ 600MHz, 1x Virtex II XC2V2000, 2x SHB Interface, 4 ComPorts and Global Bus TIM)
The SMT130 is a single site module carrier developed to provide access to a TIM module over the PCI-104 PCI bus.
Data transfers of 50-100Mbytes per second can be achieved to and from the Global Bus when accessing the SRAM and PCI Bridge, allowing fast data transfers.
The card has an ‘on-board’ JTAG controller which is software compatible with the XDS-510. This allows Code Composer studio and 3L applications to be used to debug/upload software to a DSP TIM.
The SMT361Q is based on no less than four 64-bit TMS320C6416 DSP family and offers the highest fixed-point processing power ever. Sundance did not stop here and have implemented a scalable solution using Xilinx Virtex II FPGAs. These Modules are very suitable for Imaging Processing solutions as the ‘C6416 has special functions for handling graphics up to ten-times faster than the ‘C6201 that it originates from. The SMT361Q is, from the user’s perspective, a faster version of the SMT361 ‘C6416 based Module and a system can be designed with a mixture of SMT335s and SMT361s, using the same Module Carrier. The SMT361Q is supported by the T.I. Code Composer Studio and 3L Diamond RTOS to enable full MultiDSP systems with minimum programming effort.
