SMT361Q-I

NOT FOR NEW DESIGNS

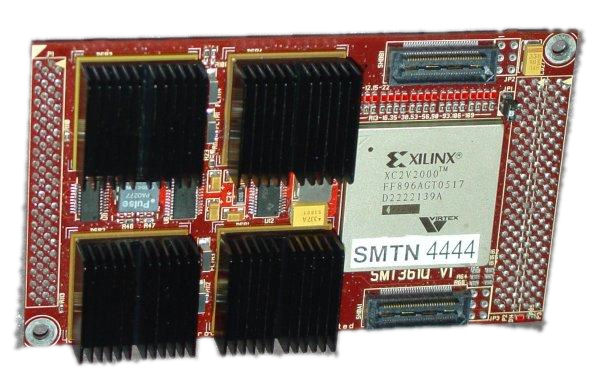

s361qi4x C6416 @ 600MHz, 1x Virtex II XC2V2000, 2x SHB Interface, 4 ComPorts and Global Bus. Industrial components




SMT361Q-I is based on no less than four 64-bit TMS32C6416EGLZA6E3 DSP family and offers the highest fixed-point processing power ever. Sundance did not stop here and have implemented a scalable solution using Xilinx Virtex II FPGAs. These Modules are very suitable for Imaging Processing solutions as the ‘C6416 has special functions for handling graphics up to ten-times faster than the ‘C6201 that it originates from.

This special version of the SMT361Q uses industrial components which, among other advantages, extent the operating temperatures beyond that of standard commercial devices.

Features

  • Single width module
  • Four 600 MHz TMS32C6416EGLZA6E3 Fixed Point DSPs
  • In excess of 20000MIPS peak performance Xilinx II FPGA XC2V2000-4FF896I
  • Two SHB Interface ports
  • Four ComPorts up to 20Mbytes/s each.
  • 8Mbytes FLASH ROM for configuration/booting
  • JTAG Diagnostics Port
  • TIM Global Connector
  • TIM standard compatible.
  • 12 months warranty

Benefits

The SMT361QI provides a flexible platform for the next generations of Telecom systems, Image Processing applications, Medical equipment and Industrial solutions – and with the added benefit of the large Virtex II FPGA, the SMT361QI enables pre-processing to be done “On-the-Fly” before the DSPs gets the data.
