4x C6416 @ 600MHz, 1x Virtex II XC2V2000, 2x SHB Interface, 4 ComPorts and Global Bus

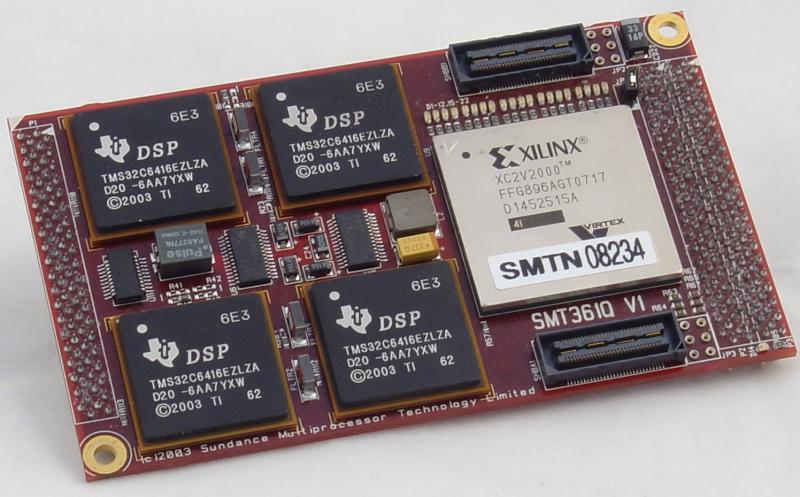

s361qSMT361Q is based on no less than four 64-bit TMS320C6416 DSP family and offers the highest fixed-point processing power ever. Sundance did not stop here and have implemented a scalable solution using Xilinx Virtex II FPGAs. These Modules are very suitable for Imaging Processing solutions as the ‘C6416 has special functions for handling graphics up to ten-times faster than the ‘C6201 that it originates from. The SMT361Q is, from the user’s perspective, a faster version of the SMT361 ‘C6416 based Module and a system can be designed with a mixture of SMT335s and SMT361s, using the same Module Carrier. The SMT361Q is supported by the T.I. Code Composer Studio and 3L Diamond RTOS to enable full MultiDSP systems with minimum programming effort.


  • Single width module
  • Four 600 or 720MHz ‘C6416 Fixed Point DSPs
  • In excess of 20000MIPS peak performance Xilinx II FPGA XC2V2000-4
  • Two SHB Interface ports
  • Four ComPorts up to 20Mbytes/s each.
  • 8Mbytes FLASH ROM for configuration/booting
  • JTAG Diagnostics Port
  • TIM Global Connector
  • TIM standard compatible.
  • 12 months warranty


The SMT361Q provides a flexible platform for the next generations of Telecom systems, Image Processing applications, Medical equipment and Industrial solutions – and with the added benefit of the large Virtex II FPGA, the SMT361Q enables pre-processing to be done “On-the-Fly” before the DSPs gets the data.
