SMT363S

NOT FOR NEW DESIGNS

Ethernet Module; SDB <–> NetSilicon’s Ethernet interface ‘C6711 DSP; Spartan-II FPGA




s363 The SMT363S is a ‘Stand-alone’ Module that combines a TMS320C6711 DSP, a Xilinx FPGA and a NetSilicon ARM-chip with integrated MAC controller for connection to an Ethernet network. Typical applications for this Module are low-cost, high-performance Radar systems, where the FPGA will do the I/O interfacing from/to the RF section; the DSP doing the FFT processing and the ARM-Core doing the data-manipulation and the control of the Ethernet/Internet connections

Features

  • Single width module
  • NET-50 Ethernet Solution
  • 16Mbytes SDRAM for the ARM Net50 processor
  • 150MHz TMS320C6711 DSP
  • 16 Mbytes SDRAM for the DSP.
  • 8 Mbyte Flash
    Dual-port Memory between the processors
  • Xilinx Spartan-II XCS200 FPGA.
  • Two SDB Interfaces
    Four ComPorts
  • TIM Global Connector
  • TIM standard compatible.
  • 12 months warranty
  • Weight Approx. 54g

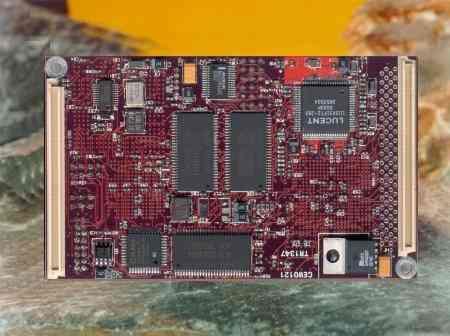

s363btm

Benefits

The SMT363s is the first of it’s kind. A Module which provides a unique path for connecting high-speed DSPs to the Internet for applications like Radar applications, Spectrum Analysers, Digital Radio and similar Telecom systems.

The SMT363s is supported by either NetSilicon Linux or the NetOS to program the ARM sections of the Net-50 processor. The DSP is controlled by either Code Composer Studio or 3L Diamond RTOS.
