Ethernet Module; SDB <–> NetSilicon’s Ethernet interface ‘C6711 DSP; Virtex E FPGA

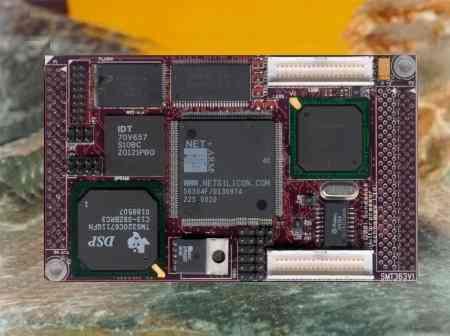

s363The SMT363V is a ‘Stand-alone’ Module that combines a TMS320C6711 DSP, a Xilinx FPGA and a NetSilicon ARM-chip with integrated MAC controller for connection to an Ethernet network. Typical applications for this Module will be low-cost, high-performance Radar systems, where the FPGA will do the I/O interfacing from/to the RF section; the DSP doing the FFT processing and the ARM-Core doing the data-manipulation and the control of the Ethernet/Internet connections


  • Single width module
  • NET-50 Ethernet Solution
    16Mbytes SDRAM for the ARM Net50 processor
  • 150MHz TMS320C6711 DSP
    16 Mbytes SDRAM for the DSP.
  • 8 Mbyte Flash
    Dual-port Memory between the processors
  • Xilinx Virtex E XC300E-6 FPGA.
  • Two SDB Interfaces
  • Four ComPorts
  • TIM Global Connector
  • TIM standard compatible.
  • 12 months warranty
  • Weight Approx. 54g


The SMT363V is the first of it’s kind. A Module which provides a unique path for connecting high-speed DSPs to the Internet for applications like Radar applications, Spectrum Analysers, Digital Radio and similar Telecom systems.

The SMT363V is supported by either NetSilicon Linux or the NetOS to program the ARM sections of the Net-50 processor. The DSP is controlled by either Code Composer Studio or 3L Diamond RTOS.
