s365eDSP Module; C6416; 256Mbytes SDRAM; Xilinx Virtex II XC2V6000

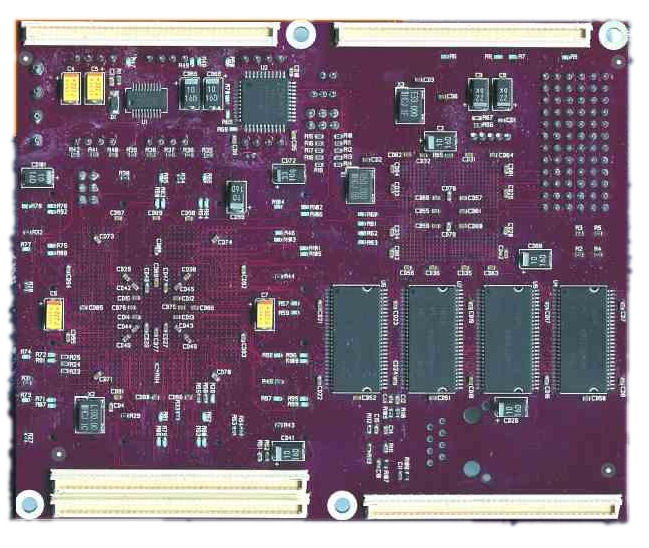

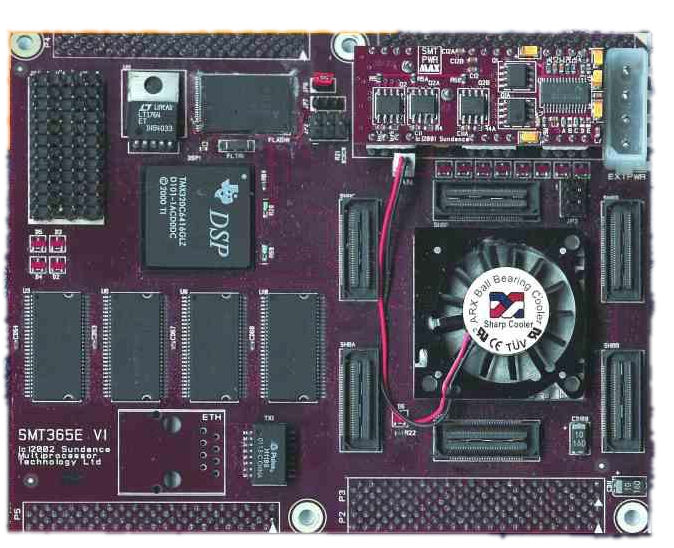

The SMT365E is based on the 600MHz 64-bit TMS320C6416 revsion1.1 DSP family and offers the highest fixed-point processing power ever. Sundance have implemented this into a scalable solution using Xilinx Virtex II FPGAs. The SMT365E has the facility to take very large FPGAs and they can be used for simulation of ASICs, large algorithms, etc. The SMT365E is, from the user’s perspective, a larger and more powerful version of the SMT365 Module and a system can be designed with a mixture of SMT365s and SMT365Es on the same Carrier. The SMT365E is supported by the T.I. Code Composer Studio and 3L Diamond RTOS to enable full MultiDSP systems with minimum efforts by programmers.


  • Double width module
  • 600MHz TMS320C6416 Rev 1.1 Fixed Point DSP
  • 4800MIPS peak performance
  • Xilinx Virtex II FPGA XC2V6000 in FF1152 package
  • 256Mbyte of SDRAM @ 100MHz.
  • Six 400Mbytes/s Sundance High-speed Bus ports
  • Six ComPorts up to 20Mbytes/s each for InterDSP communications.
  • 4Mbytes FLASH ROM for configuration/booting
  • JTAG Diagnostics Port
  • UTOPIA Connectors
  • Serial-port Connectors
  • General purpose I/O Connectors
  • TIM Global Connector
  • TIM standard compatible.
  • 12 months warranty


The SMT365E provides a flexible platform for the next generation of Telecom systems, Image Processing applications, Medical equipment and Industrial solutions. With the added benefit of the large Virtex II FPGA, the SMT365E enables pre-processing to be done ‘On-the-Fly’ before the DSP gets the data. The Sundance provided basic VHDL Cores for InterDSP communication take approximately 300k gates of the FPGA with the rest available for the user. The SHB provides 60 I/O pins each and they are available to the user as general purpose I/O pins and uses the high-speed connector system from Samtec and use the “Blue Ribbon” cables from Precision Interconnect.
