DAQ Module; Dual Channel ADC / DAC; Sundance High-speed bus; Xilinx Virtex II FPGA; ZBT RAM; AC Coupled

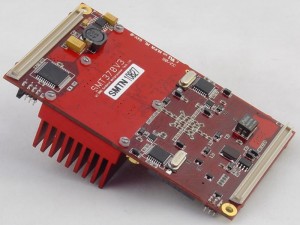

s370SMT370 offers a integrated solution for high-speed Dual channel Analogue to Digital data collection and Digital to Analogue data generation. The single width Module has two AD6645s from Analog Devices Inc. which are 14-bit ADCs with a 105MSPS sampling rate. All necessary functions, including track-and-hold (T/H) and reference are included on chip to provide a complete conversion solution. The SMT370 also has an AD9777 dual channel TxDAC for converting up to 400MSPS into analogue signals. The converters are interfaced to a Xilinx Virtex-2 FPGA that controls them and also provides the data-paths for the digital signals.

The data are routed to four 16-bit Sundance Digital Buses, using two Sundance High-speed Bus connectors and the control of the ADCs is done with the help of a Sundance ComPort.


The SMT370 is available in 4 versions:

  • SMT370-AC
    • AC Coupled
  • SMT370-AC-I
    • AC Coupled, using industrial grade components and a custom heatsink
  • SMT370-DC
    • DC Coupled
  • SMT370-DC-I
    • DC Coupled, using industrial grade components and a custom heatsink


  • Two 14-bit ADCs (AD6645) sampling up to 105 MHz. AC coupled
  • Dual 16-bit TxDAC (AD9777) sampling up to 400 MHz (interpolation). AC coupled
  • Single width module.
  • Two Sundance High-speed Bus (SHB) connectors.
  • Two 20 MBytes/s communication ports.
  • Low-jitter system clock.
  • Xilinx Virtex-II FPGA (XC2V1000-6).
  • 50-Ohm analogue inputs and outputs, external triggers and clocks via MMBX (Huber and Suhner) connectors.
  • User defined pins for external connections.
  • Compatible with a wide range of Sundance SHB modules.
  • TIM standard compatible..
  • Weight Approx. 75g
  • 12 months warranty


Ideal for flexible system architectures and specifications IF Radar Sampling, Base-band Radar Sampling, Spectrum Analysers, Digital Radio Receivers, Multi-channel Receivers and Cellular/PCS base stations.

The XC2V1000 Xilinx FPGA has 1 million gates and Sundance uses approx. half a million for controlling the converters and rest can be used by the OEM customer for doing pre-processing on the data or for other custom controls.
