NOT FOR NEW DESIGNS
ADC Module, 2 channels, 105MSPS @ 12bit; Sundance Digital Bus interface

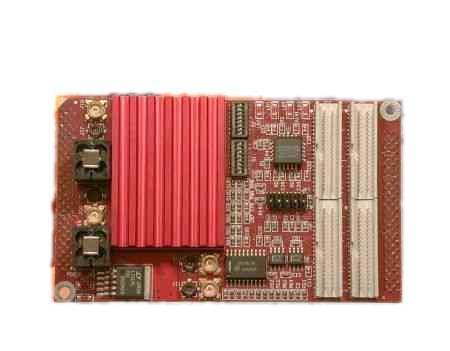

SMT380 offers a total Analogue to Digital data conversation front-end for 2 channels of 105MSPS sampling on a single width Module. The use of Analog Device Inc. AD9138 differential buffer, provide AD9432 ADC converter with the data and from converted data goes via a FPGA to a two Sundance Digital Bus for each channel of data to enable individual processing of I & Q data.. The selection of modes is done via dip-switches, so the Module will always start-up in a configure mode.
Features
- Single width Data Acquisition Module
- Simultaneous 2 channel 12-bit Analogue to Digital data conversation
- Uses AD8138 Differential Buffers and AD9432 converters.
- 105MSPS sampling rate on each channel directly to two Sundance Digital Bus’s.
- 80dB dynamic range and 68dB signal/noise ration.
- External clock and trigger connectors, either Huber & Suhner’s MMBX or JAE’s CV10.
- 12 months warranty
Benefits
- Ideal for Communications Systems, Digital Radio Receivers
- Base Station and ‘Zero-IF’ Subsystems, GPS Receivers
- Wireless Local Loop (WLL), Cellular base stations
- Local Multipoint Distribution Service (LDMS)
- HDTV Broadcast Cameras and Film Scanners, Spectrum analysers.
