MMCX <> BNC Cable 1m length

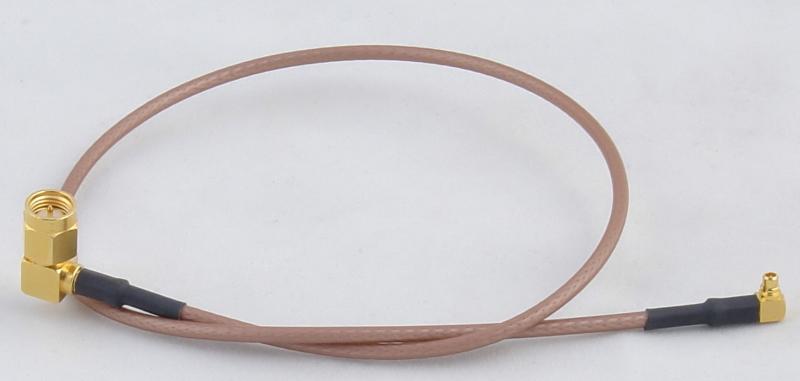

SMT507-SMA shown, not SMT507-BNC

1 meter long MMCX to BNC cable.

MMCX connectors are designed for frequency ranges from DC up to 6 GHz and for applications where smallest dimensions have to be achieved.

The reliable “snap-on” coupling mechanism ensures that the electrical parameters are consistently reproduced.

MMCX series provide a low RF leakage due to its non-slotted outer contact.

For more information about the MMCX connectors (including technical data), please read this PDF (from Huber & Suhner)

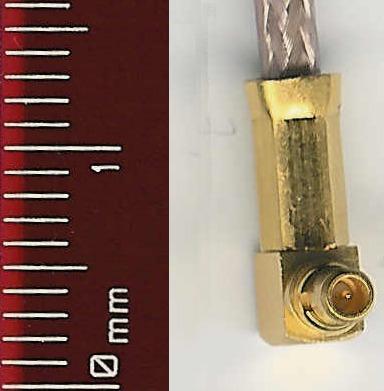

Close up image of the MMCX connector.

mmcx connector
