SMT580

PCIE to PXIE adaptor


s580 With the SMT580 you can plug your PXIE card into a standard PCIe slot on your PC.

This enables easier and faster debugging of software, letting you develop your new design on your already configured PC.

It can be used with the SMT 7xx series of PXI express cards.



SMT580_Schematics

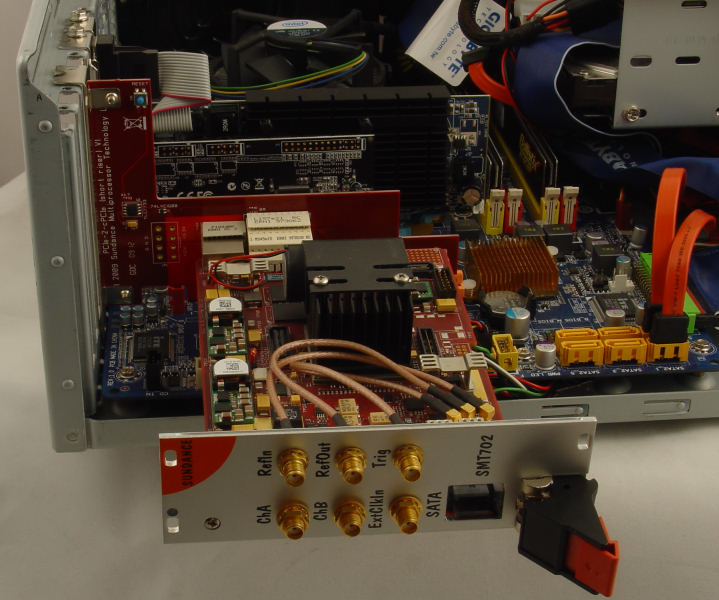

s580_with_board

s580
