SHB to SHB with logic analyser connection

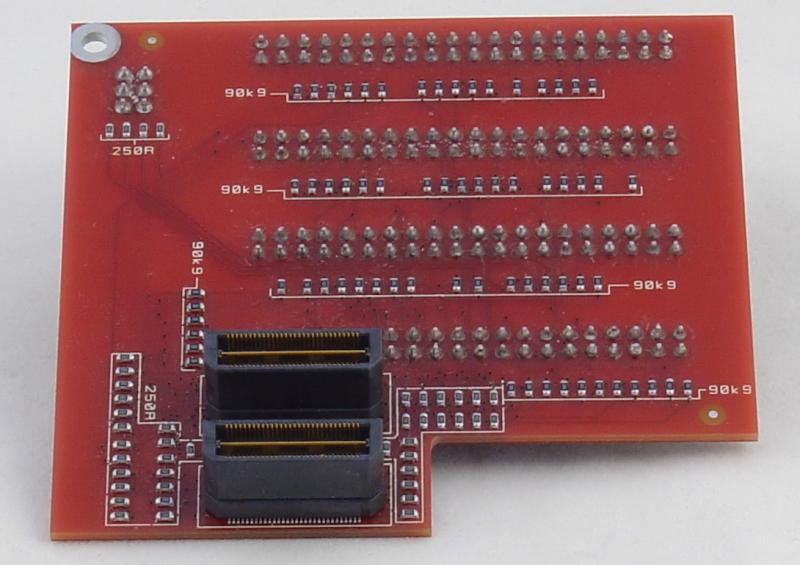

s597 This TIM mezzanine board provides an SHB to SHB link which can be used to join two adjacent TIMs’ SHB connectors together. It then provides Agilent compatible 40-way logic analyser probe points. These headers are for direct connection with the 0.1″ dual-in-line Agilent cable headers (not the flying leads).

Both 16-bit SDB interfaces are made available on separate probe headers. All of the additional control and user signals are accessible on two further headers.
