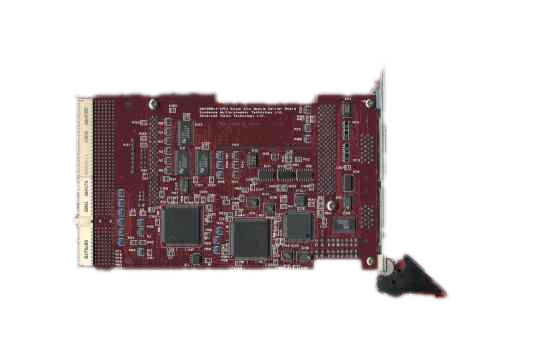

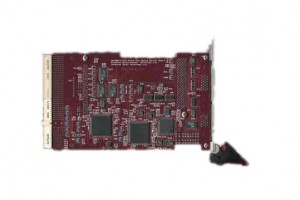

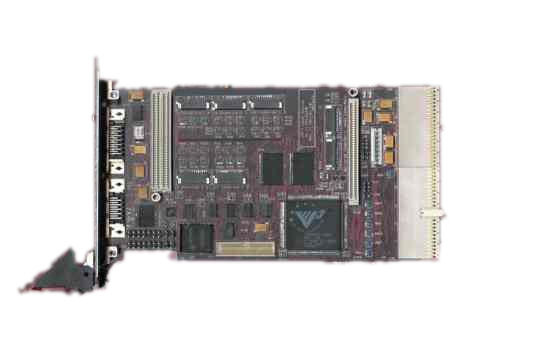

s300cPCI 3U Carrier with 1 module site; PXI compatible; V3 PCI Chip-set; SDB and 1Mbyte of shared memory on Master site

The SMT300 is a single site module carrier developed to provide access to a TIM Module over the CompactPCI bus running at 33MHz with a 32-bit data bus. The card has an “on-board” JTAG ACT8990 controller. This allows Code Composer Studio and 3L Diamond applications to be used to debug/upload software to a Module. A single buffered ComPort with conflict protection is available on the chassis front panel. This has the versatility to access any of four ComPorts from the Module. The main connection to the 3U CompactPCI bus is via the Module’s Global Bus. A single ComPort is also mapped to the CompactPCI bus providing support for application boot and data transfer. 1 Mbyte of SRAM is mapped on to the Global Bus and can be accessed by the Module as a global resource or by the CompactPCI Bridge. A 3.3 volt supply will be available at the fixing pillars for the Module. This supply will be taken from the CompactPCI edge connector. An “on-board” Sundance Digital Bus (SDB) interface to the Cos300btmmpactPCI Bridge allows the card to be interfaced to SDB standard modules. The National Instrument’s Extensions for Instrumentation (PXI) signals are utilized allowing multiple SMT300’s to be synchronized in a system.

To aid in system development and debugging of designs using the SMT300, a cPCI / PXI -> PCI converter can be purchased.


  • Single module site
  • PCI ‘master mode’ (PCI DMA) support on one ComPort
  • Host interface bandwidth via global bus in excess of 100 Mbytes/s @ 33MHz PCI clock
  • Host interface via ComPort in excess of 10 Mbytes/s
  • Buffered External ComPort
  • Expansion via interprocessor ComPorts
  • Sundance Digital Bus port for interface to other SDB compatible products
  • 1Mbyte Shared SRAM interface between PCI and Module
  • 512Kbytes FLASH ROM for configuration etc.
  • On-board XDS-510 compatible JTAG Master
  • 12 months warranty


Reduce cost for simple applications
Scaleable system configuration
Low cost Multiprocessor resource
Flexible Task allocation
Expandable system allows for future expansion
Interface to the National PXI Systems and allow DSP to be added to the PXI Bus.
