ADC Module, 4 Channels; 250MHz @ 14 bits

s941 The SMT941 is a single width expansion TIM that plugs onto an SLB base module, the SMT351T (Virtex-5 LXT or SXT FPGA) as an example and incorporates 2 dual-channel Analog-to-Digital Converters. The SMT941 implements a comprehensive clock circuitry based on a chip (CDCE72010) from Texas instrument that allows synchronisation among the converters and the use of an external reference clock. It provides a complete conversion solution and stands as a platform that can be part of a transmit/receive base station.

ADCs are 14-bit and can sample at up to 250 MHz. All converters are 1.8/3.3-Volt.

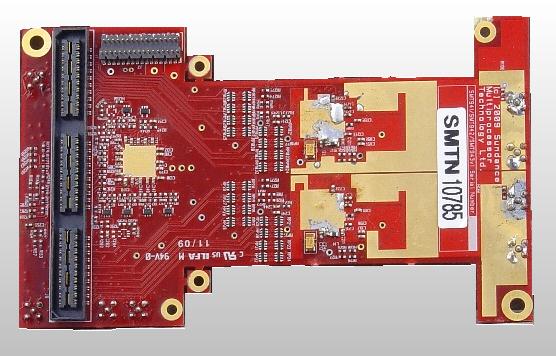

s941btmThe Xilinx FPGA (Virtex-5 LXT or SXT series in the case of the SMT351T) on the base module is responsible for handling data going to one of the following destinations: converters, Comports, Rocket Serial Link (RSL). These interfaces are compatible with a wide range of Sundance’s modules.

The memory (DDR2) on the base module can store incoming and/or outgoing samples. Converter configuration, sampling and transferring modes are set via internal control registers stored inside the FPGA and accessible via Comport.

The SMT941 module is well-suited for multi-carrier, wide bandwidth communication applications.
