4 Channel 16-bit ADC/DAC SLB Mezzanine

s946 The SMT946 (16 bit) is a single width expansion SLB mezzanine that plugs onto a base TIM that incorporates the SLB (eg SMT368, SMT111).

It uses 4 TI ADS8372 16-bit ADCs running at 600kHz and 4 TI DAC8831 16-bit DACs at 2.7MHz. Input and output is via MMCX co-axial connectors.

All ADC and DAC channels sample simultaneously (no input multiplexers).

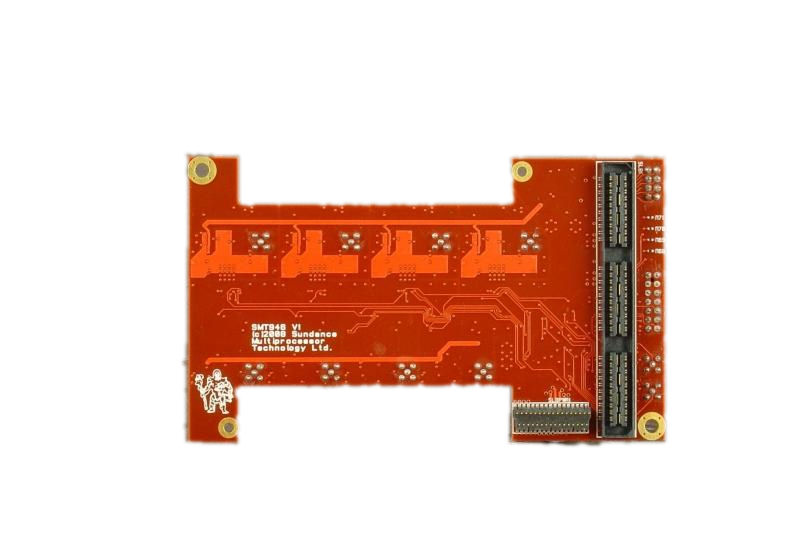

s946btmSMT946 Product Specification
