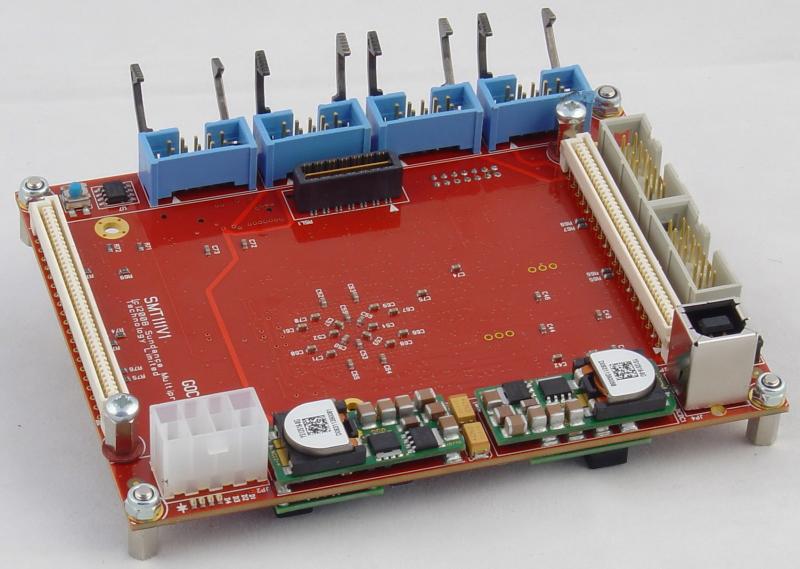

s111Stand Alone Module Carrier with 1 Module site and I/O facilities, 12Volt supply, USB2; Boxable

The SMT111 is a carrier board capable of accepting a single TIM and SLB mezzanine module.
A single 12Vdc power input is required, and on-board converters produce the necessary TIM supplies.


  • TIM & SLB Carrier.
  • Single 12Vdc power requirement.
  • TIM ComPorts connect to SLB.
  • USB2 Interface to TIM ComPort.
  • UART and RS232 interfaces.
  • JTAG In/Out.

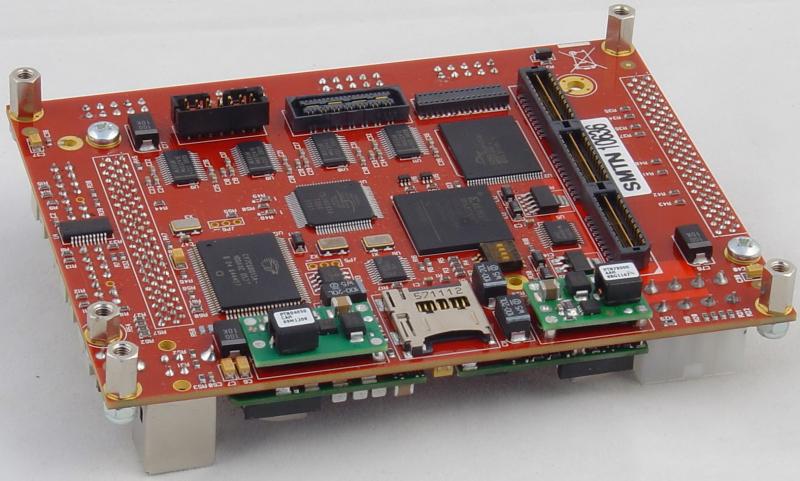

  • s111btmFlash to store TIM configuration/application.

SMT111 – User Manual

SMT111 Product Specification
