SMT8246

SDR system, Fast ADCs & DACs, Dual C6455 @ 1GHz Fixed-Point DSP, USB2 interface

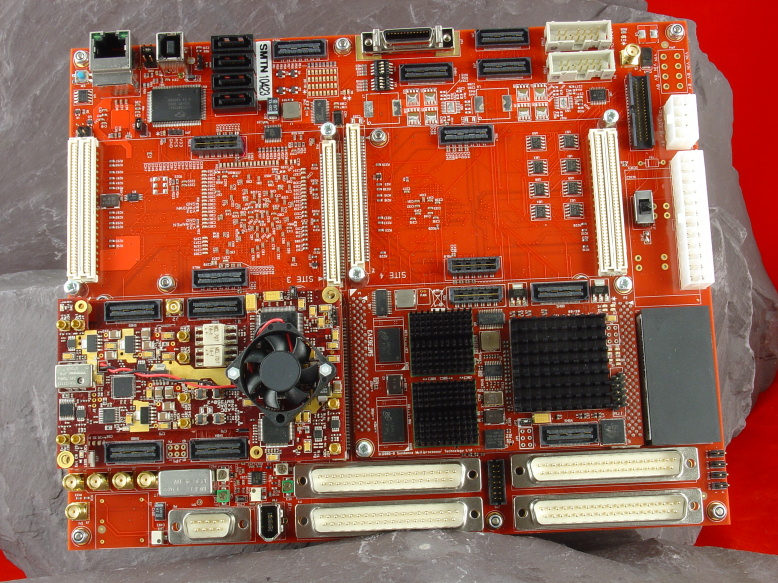

s8246The SMT8246 development platform supports the design and development of a wide range of radio and waveform applications.

The SMT8246 can be used for SDR Research, Military & Public Safety telecom prototypes, 3rd & 4th generation wireless phone prototypes, High-speed Data Acquisition, High-Energy Physics and Medical Research.

The SMT8246 comprises a C6455-based DSP module (SMT362) and a dual high-speed ADC/DAC module (SMT350) coupled with an FPGA base module (SMT368). The modules are plugged onto a Stand-Alone Carrier (SMT148-FX) with USB and Ethernet connectors to the outside world.

The kit supports Windows® environment and includes full integration and compatibility with The MathWorks® simulation and DSP/VHDL code generation tools via Sundance’s SMT6040 Toolkit (not included).

Features

  • Two 14-bit ADCs channels each with 125 MSPS
  • Xilinx Virtex-4 SX (XC4VSX35) & Virtex-4 FX60 (plus another Virtex-4 FX60 on SMT148-FX) FPGAs for pre- and post-processing
  • Two High-performance 1GHz ‘C6455 Fixed Point DSPs for processing tasks
  • A dual-channel 16-bit DAC that converts digital results into analog signals at a rate up to 500 MSPS
