Ethernet Module; SHB; Net-50 + ARM7; 225MHz ‘C6713 DSP; Virtex II FPGA

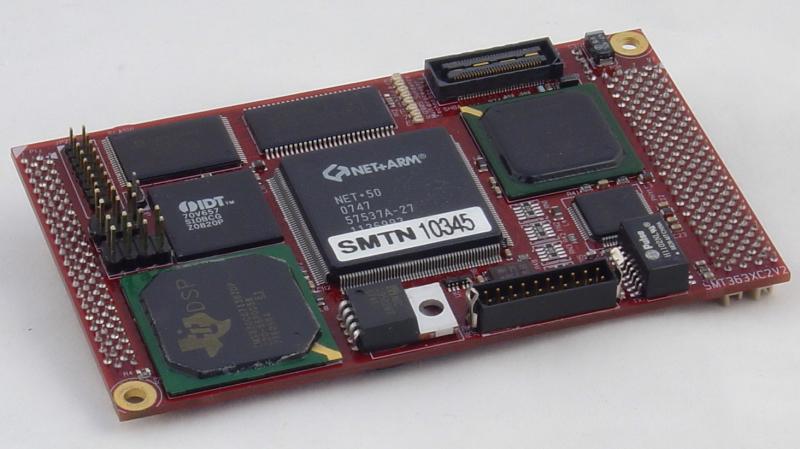

s363xc2The SMT363-XC2 is a “Stand-alone” Module that combines aTMS320C6713 DSP, a Xilinx FPGA and a NetSilicon ARM-chip with integrated MAC controller for connection to an Ethernet network. Typical applications for this Module will be high-performance Radar systems, where the FPGA will do the I/O interfacing from/to the RF section; the DSP doing the FFT processing and the ARM-Core doing the data-manipulation and the control of the Ethernet/Internet connections


  • Single width module
  • Net-50 Ethernet Solution
  • 16Mbytes SDRAM for the ARM Net50 processor
  • 225MHz TMS320C6713 DSP
  • 64 Mbytes SDRAM for the DSP.
  • 8 Mbytes Flash
  • Dual-port Memory between the processors
  • Xilinx Virtex II – XC2V1000-6 FPGA.
  • Two 16-bit SDB Interfaces on an SHBconnector
  • Six ComPort connection from FPGA; Four implemented in current firmware
  • TIM Global Connector
  • TIM standard compatible.
  • Typical power-consumption: Approx. 4Watts
  • 12 months warranty


The SMT363-XC2 is the second generation of “Hybrid” Modules that combines FPGA, Floating Point DSP, and an ARM7 Core with an integrated MAC controller for connection to a Ethernet network. The SMT363-XC2 provide a unique path for connecting high-speed DSPs to the Internet for applications like Radar applications, Spectrum Analysers, Digital Radio and similar Telecom systems.

The SMT363-XC2 is supported by eitherNetSilicon Linux or the NetOS or SMT6060 to program the ARM sections of the Net50 processor. The DSP is controlled by either Code Composer Studio or 3L Diamond RTOS.
