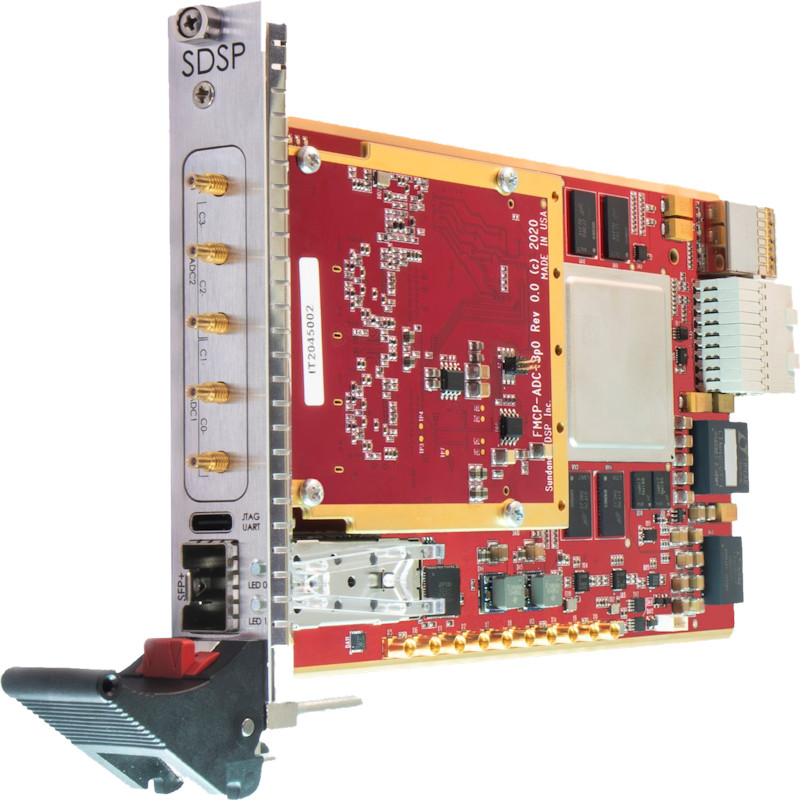

Revolutionising Test & Measurement: Introducing the PXIe720 FPGA Board

The PXIe720 FPGA board, a powerful, flexible, and expandable PXIe module fully compatible with PXI™-5 and ANSI-Vita-57.4 FMC+ carrier standards. PXIe is the platform of choice for the test, measurement, and instrumentation market, as well as the defence market.

The presence of an FMC+ site gives the user the ability to add different functionalities through the many available FMC+ boards from Sundance DSP or other vendors. The host interface is via an x4 Gen3 PCIe Link. The PCIe interface is implemented through firmware built using the latest Xilinx tools. The Xilinx-supported implementation avoids any licensing costs.

The onboard FLASH can be used to store up to three-bit streams for configuring the FPGA through the driver from the host. A JTAG interface is also available to reconfigure the FPGA from a host during development and debugging via logic analysers.

The PXIe720 FMC+ carrier card, which is the replacement for the popular PXIe700 FPGA peripheral board, has several updates and improvements over the PXIe700 while keeping key features like support for White Rabbit communication protocol:



  • Board is based on AMD / Xilinx XCKU060-2FFVA1517 but can also use XCKU085 and XCKU115;
  • SFP+ cage to provide 10Gb Ethernet;
  • HPC FMC+ connector with 23 DP 16.3 gigabit serial links, 34 LA, 24 HA, and 22 HB lanes;
  • 8GB 64-bit wide DDR4 memory;
  • 512MB of QSPI flash with multi-boot capabilities;
  • Clock resources to support White Rabbit extreme-precision time protocol via SFP+ fibre.

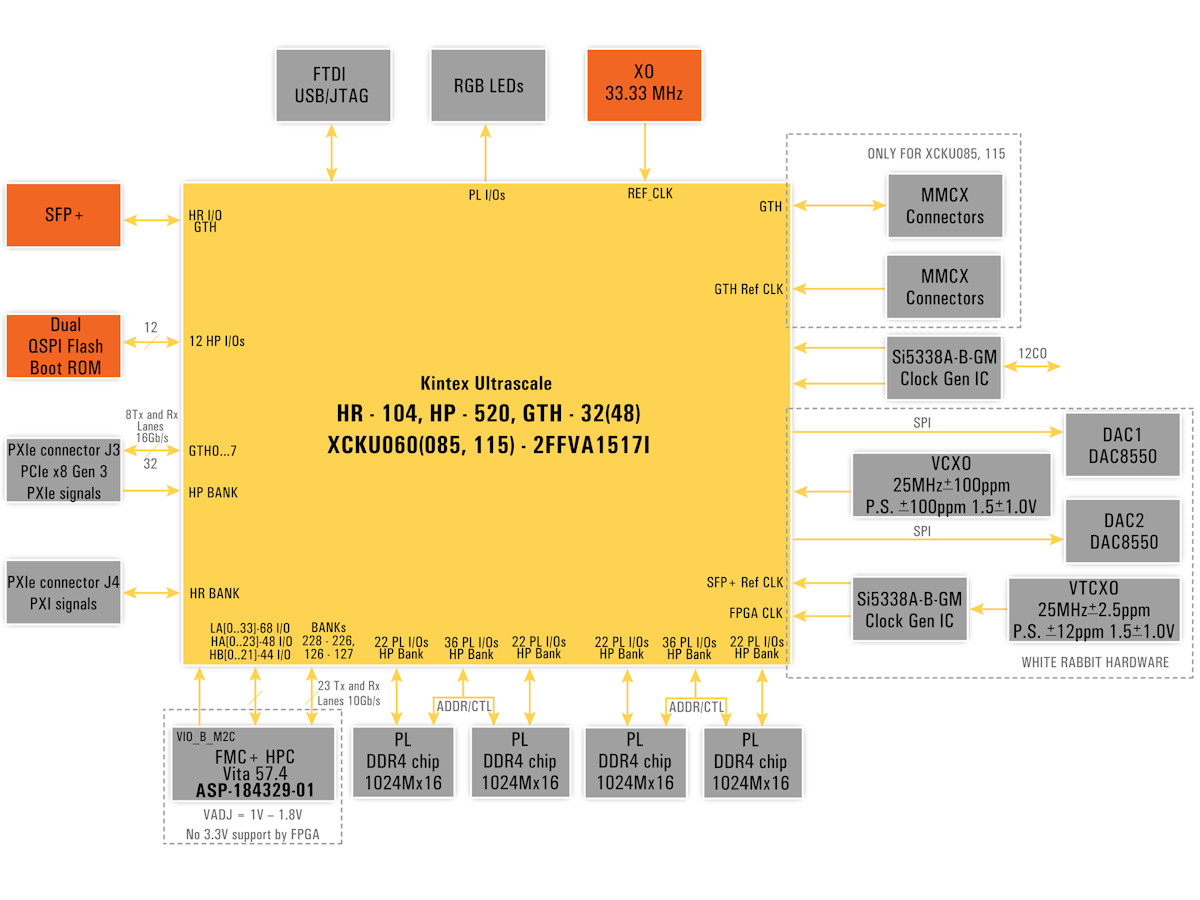

Features

  • PXIe form factor with 8 lanes of PCIe Gen 3 EP interface to host;
  • PXI control signals for instrumentation support;
  • Base FPGA is XCKU060-2FFVA1517E, also can support XCKU085 and XCKU115 version as build option;
  • SFP+ cage to provide 10Gb Ethernet;
  • HPC FMC+ connector with 23 FMC_DP 16.3 Gbps serial links, 34 LA, 24 HA and 22 HB lanes;
  • Supported VADJ – 1.0 – 1.8V;
  • Two channels of DDR4 SDRAM memory, each 4GB deep and 32-bit wide, base chip is MT40A1G16TB-062E;
  • 128MB of QSPI flash with multi-boot capability;
  • Core power up to 50Amps;
  • Four User LEDs, two of them visible from front panel, power good LEDs, not visible from front panel;
  • Clock resources to support White Rabbit extreme-precision time protocol via SFP+ fiber.
  • MMCX internal connectors for:
    • 2 Transceivers from 229 Bank – differential input/output;
    • Reference clock for 229 Bank – differential input;
    • Reference clock for Bank 24 – input SE 1.8V LVCMOS.
  • 2 front panel RGB LED

Use Cases

The PXIe720 FPGA board is ideal for a wide range of applications, including:

Advanced Instrumentation:
Develop high-performance test equipment for electronics, aerospace, and automotive industries.

Signal Processing:
Implement complex algorithms for radar, sonar, and communication systems.

High-Speed Data Acquisition:
Create systems for capturing and analyzing fast-transient signals in scientific research.

Real-Time Control:
Design responsive control systems for industrial automation and robotics.

Protocol Implementation:
Develop and test custom communication protocols for specialized applications.

Hardware Acceleration:
Offload computationally intensive tasks from CPUs for improved system performance.

FPGA Prototyping:
Rapidly prototype and validate FPGA designs before final implementation.

5G and Beyond:
Develop and test next-generation wireless communication systems.

Quantum Computing Research:
Create precise control and measurement systems for quantum experiments.

AI/ML Integration:
Implement machine learning algorithms directly in hardware for ultra-fast inference in test scenarios.
