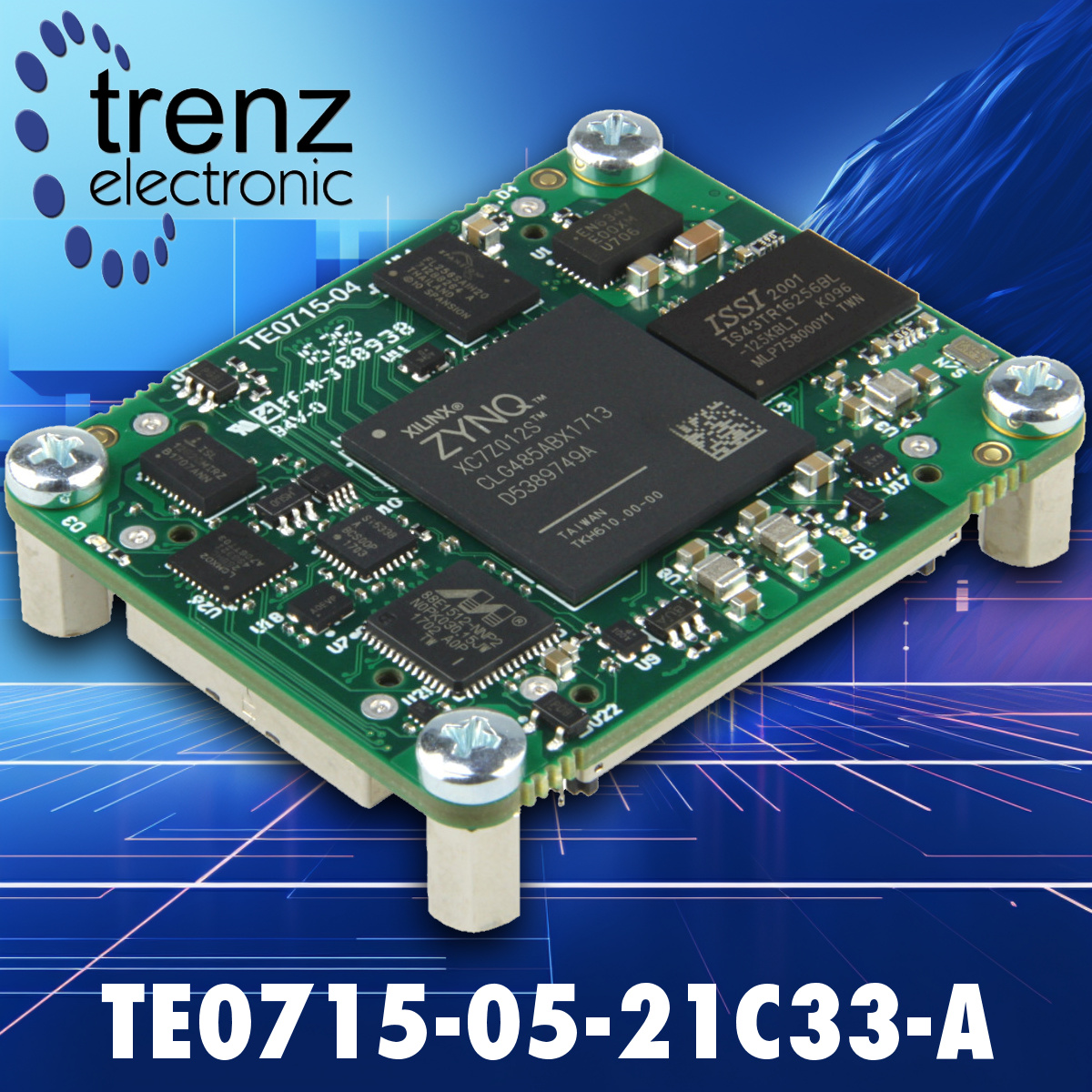

SoC Module with AMD Zynq™ Z-7012S single core, 1 GByte DDR3L SDRAM, 4 x 5 cm

The Trenz Electronic TE0715-05-21C33-A is a SoC module integrating a AMD/Xilinx Zynq™ Z-7012S with 4 MGT Links, a Gigabit Ethernet transceiver (physical layer), 1 GByte DDR3L SDRAM, 32 MByte SPI Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking strips.

This device contains a single-core ARM Cortex-A9 processor and represents the lowest cost entry point to the scalable Zynq™ 7000 platform.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible with each other.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer’s design and cooling solution. Please contact us for options.

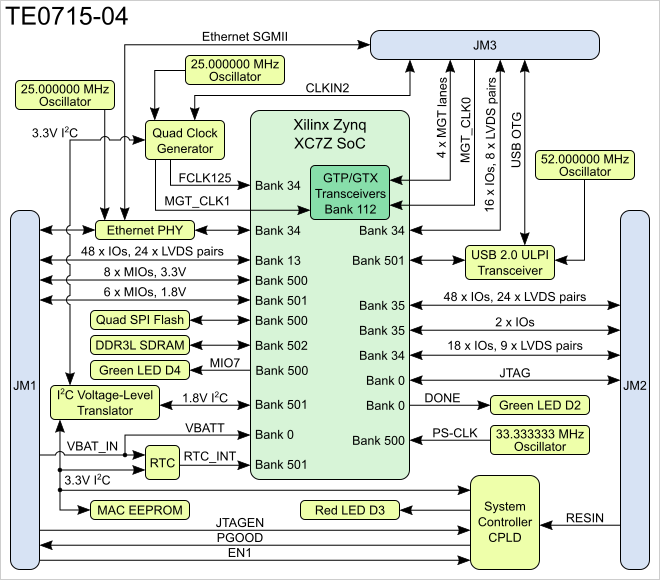

Block Diagram

Features

  • AMD/Xilinx Zynq™ XC7Z012S-1CLG485C
  • Rugged for shock and high vibration
  • Single-Core ARM Cortex-A9 MPCore up to 766MHz
  • 10/100/1000 tri-speed gigabit Ethernet transceiver (PHY) with SGMII
  • MAC Address EEPROM
  • USB 2.0 high-speed ULPI transceiver
  • 1 GByte (32-bit) DDR3L SDRAM
  • 32 MByte QSPI Flash memory (with XiP support)
  • Programmable Clock Generator: Transceiver Clock (default 125 MHz)
  • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  • 132 FPGA I/O’s (65 LVDS pairs possible) and 14 PS-MIO available on board-to-board connectors
  • 4 GTP/GTX Tranceivers
  • On-board high-efficiency DC-DC converters
    • 4.0 A x 1.0V power rail
    • 3.0 A x 1.5V power rail
  • Temperature compensated RTC (real-time clock)
  • System management
  • eFUSE bit-stream encryption
  • AES bit-stream encryption
  • User LED
  • Evenly-spread supply pins for good signal integrity

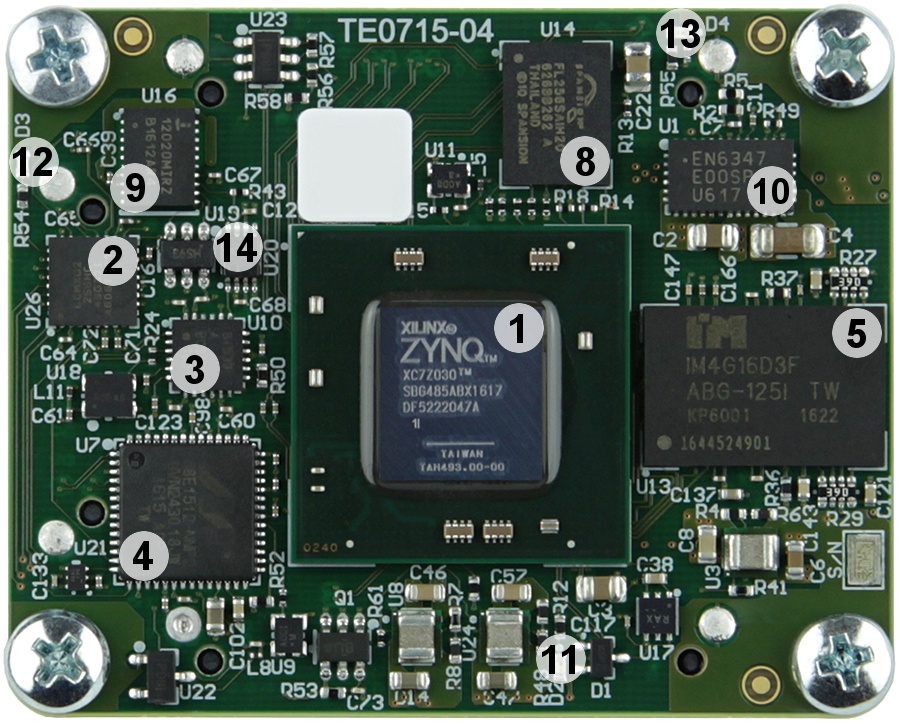

1. Xilinx Zynq-7000 all programmable SoC, U5
2. System Controller CPLD, U26
3. Programmable quad clock generator , U10
4. 10/100/1000 Mbps Ethernet PHY, U7
5. 2 x 4-Gbit DDR3L SDRAM (1.35 V), U12 and U13
6. Hi-speed USB 2.0 ULPI transceiver, U6

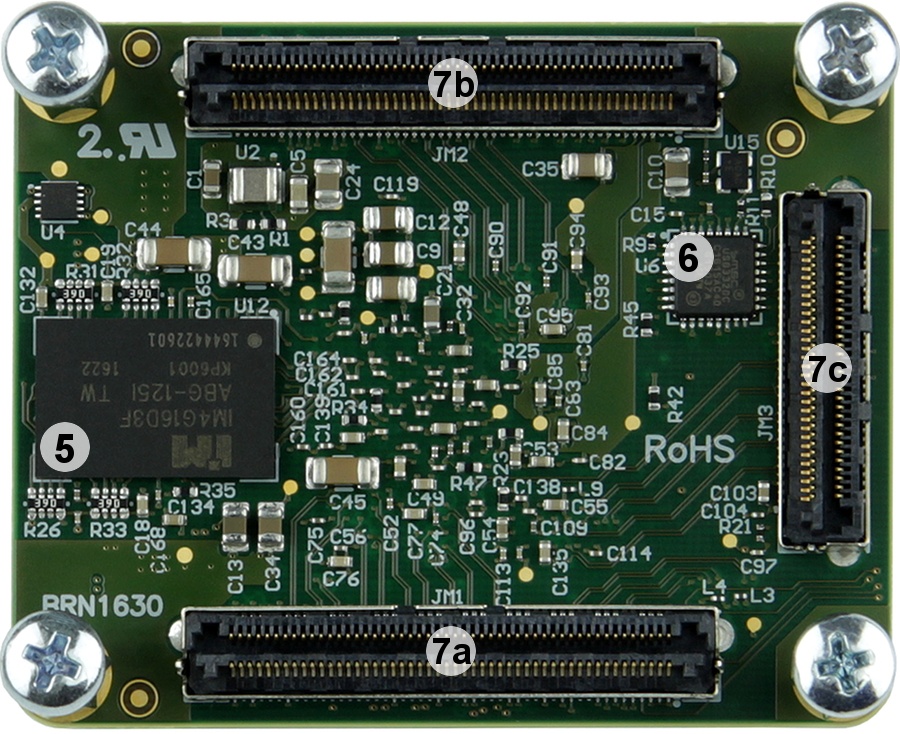

7a. B2B connector Samtec Razor Beam™ LSHM-150, JM1
7b. B2B connector Samtec Razor Beam™ LSHM-150, JM2
7c. B2B connector Samtec Razor Beam™ LSHM-130, JM3
8. 32-MByte quad SPI Flash memory, U14
9. Low-power RTC with battery backed SRAM, U16
10. 4A PowerSoC DC-DC converter, U1
11. Green LED (DONE), D2
12. Red LED (SC), D3
13. Green LED (MIO7), D4
14. 2-bit bidirectional 1-MHz I2C bus voltage-level translator, U20
