TE0808-05-9BE21-LZ – in stock now.

UltraSOM+ MPSoC Module with AMD Zynq™ UltraScale+™ ZU9EG-1E, 4 GB DDR4, LP

The Trenz Electronic TE0808-05-9BE21-LZ is an MPSoC module integrating an AMD/Xilinx Zynq™ UltraScale+™ ZU9EG, 4 GByte DDR4 SDRAM and 128 MByte Flash memory for configuration and operation, 20 x serial high-speed transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

TE0808 TRM
REQUEST QUOTE

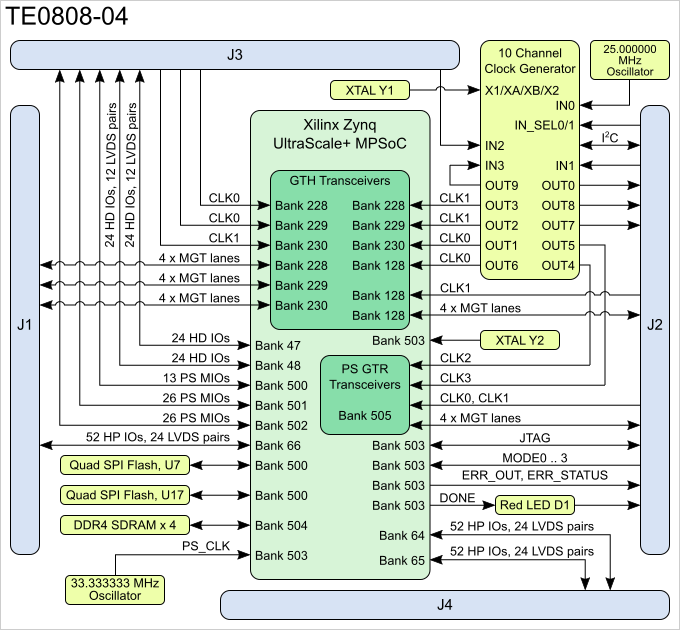

Block Diagram

Features

  • AMD/Xilinx Zynq™ UltraScale+™ XCZU9EG-1FFVC900E
  • ZU9EG 900 Pin Packages
  • 3 mm mounting holes for skyline heat spreader
  • Size: 52 x 76 mm
  • B2B Connectors: 4 x 160 pin
  • Rugged for shock and high vibration
  • 4 GByte DDR4 SDRAM, 64-Bit width
  • 128 MByte SPI Boot Flash (dual parallel)
  • User I/Os
    • 65 x PS MIOs, 48 x PL HD GPIOs, 156 x PL HP GIPIOs (3 banks)
    • Serial transceivers: 4 x PS-GTR, 16 x PL-GTH
    • Transceiver clocks inputs and outputs
    • PLL clock generator inputs and outputs
  • Si5345 – 10 output PLL
  • All power supplies on board, single 3.3V Power required
    • 14 on-board DC/DC regulators and 13 LDOs
    • LP, FP, PL separately controlled power domains
  • Support for all boot modes (except NAND) and scenarios
  • Support for any combination of PS connected peripherals
  • Evenly spread supply pins for good signal integrity

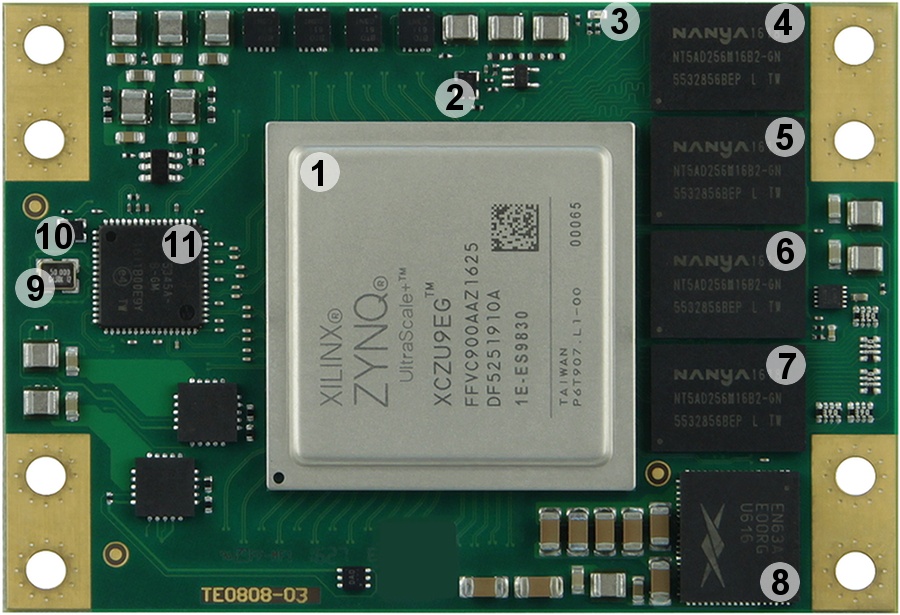

  1. Xilinx ZYNQ UltraScale+ XCZU9EG MPSoC, U1
  2. Low-power programmable oscillator @ 33.333333 MHz (PS_CLK), U32
  3. Red LED (DONE), D1
  4. 256Mx16 DDR4-2400 SDRAM, U12
  5. 256Mx16 DDR4-2400 SDRAM, U9
  6. 256Mx16 DDR4-2400 SDRAM, U2
  7. 256Mx16 DDR4-2400 SDRAM, U3
  8. 12A PowerSoC DC-DC converter, U4
  9. Quartz crystal, Y1
  10. Low-power programmable oscillator @ 25.000000 MHz (IN0 for U5), U25
  11. 10-channel programmable PLL clock generator, U5

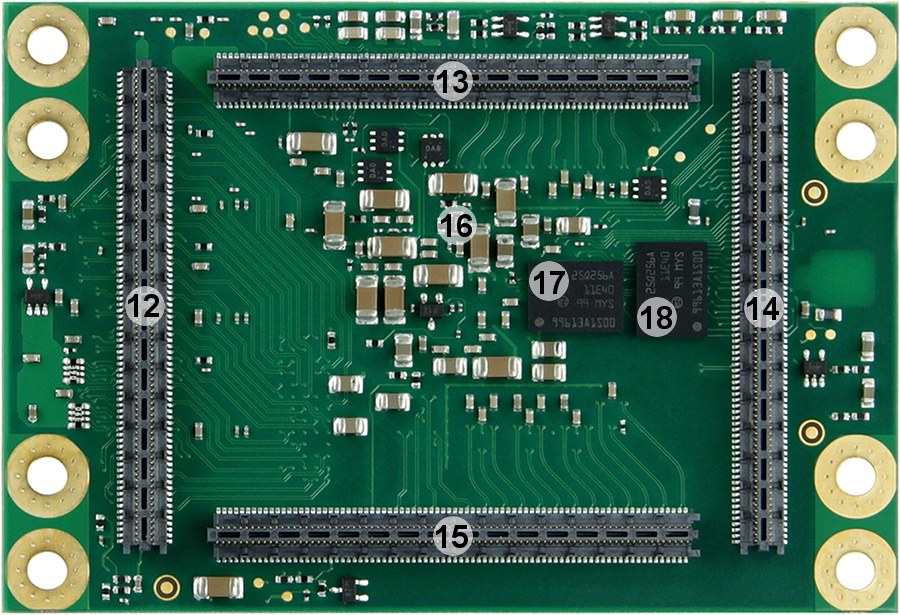

  12. Ultra fine 0.50 mm pitch, Razor Beam™ LP Slim Terminal Strip with 160 contacts, J4
  13. Ultra fine 0.50 mm pitch, Razor Beam™ LP Slim Terminal Strip with 160 contacts, J2
  14. Ultra fine 0.50 mm pitch, Razor Beam™ LP Slim Terminal Strip with 160 contacts, J3
  15. Ultra fine 0.50 mm pitch, Razor Beam™ LP Slim Terminal Strip with 160 contacts, J1
  16. Quartz crystal, Y2
  17. 256 Mbit serial NOR Flash memory, U7
  18. 256 Mbit serial NOR Flash memory, U17
