NEW Trenz Electronic TE0813 MPSoC Module in stock now

MPSoC Module with Xilinx Zynq UltraScale+ ZU2CG-1E / ZU4EG-1E, 2 GByte DDR4, 5.2 x 7.6 cm

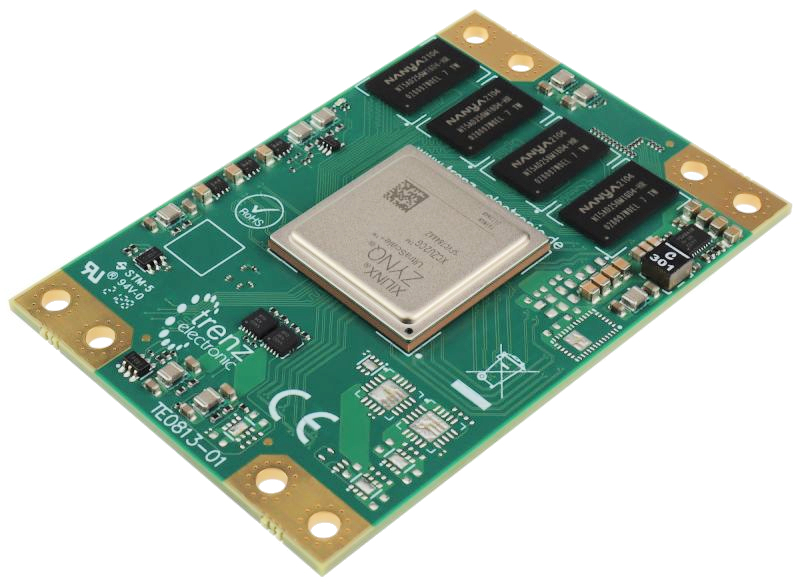

The Trenz Electronic TE0813-01 is an industrial-grade MPSoC module integrating a Xilinx Zynq UltraScale+ with ZU2CG / ZU4EG, 2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

Download the full Trenz Electronic catalogue here.

Key Features

  • Xilinx Zynq UltraScale+ XCZU2CG-1SFVC784E or XCZU4EG-1SFVC784E
  • ZU2CG / ZU4EG, 784 pin package
  • Size: 5.2 x 7.6 cm
  • Plug-on module with 4 x 240 pin B2B connectors
  • Rugged for shock and high vibration
  • 3 mm mounting holes for skyline heat spreader
  • 2 GByte (64-bit width) DDR4 SDRAM
  • 128 MByte QSPI Boot Flash dual parallel
  • 2 Kbit serial EEPROM with EUI-48 Node Identity
  • Graphic Processing Unit (GPU)
  • Si5338A – 4 output PLL
  • User I/O
    • 65 x multi-use I/O’s (MIO)
    • 48 x high-density (HD) I/O’s (all)
    • 156 x high-performance (HP) I/O’s (3 banks)
    • Serial transceiver: 4 x GTR 4
    • Programmable 4-channel PLL clock generator
  • All power supplies on board
  • Single 3.3V power source or 5V and 3.3V standby power sources required
  • Evenly spread supply pins for good signal integrity

TE0813 on the Trenz Electronic website

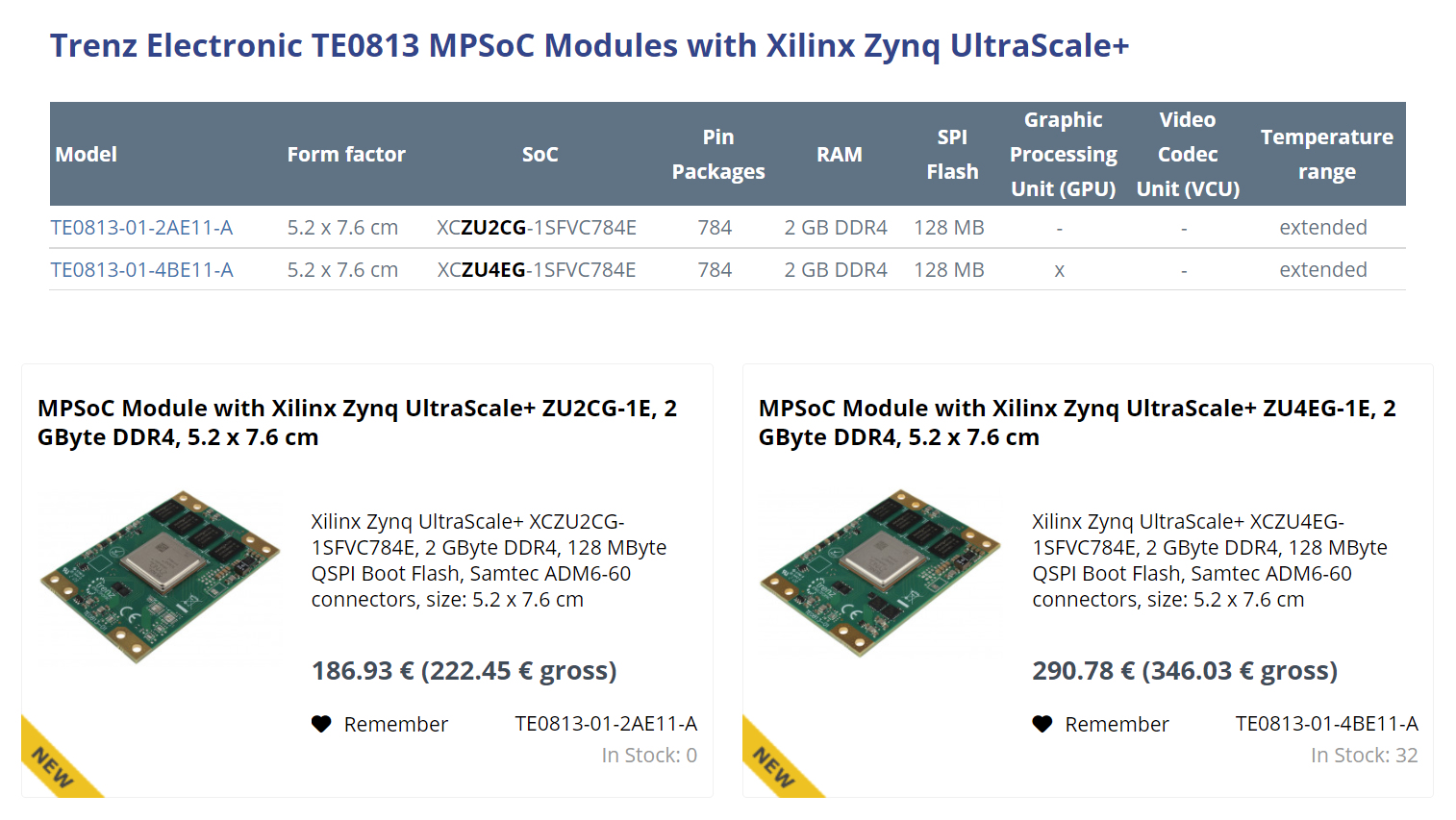

Two variations of the TE0813 are available, see below for the details of which FPGA is included with each version.

TE0813-01-2AE11-A



Xilinx Zynq UltraScale+

ZU2CG-1E FPGA

TE0813-01-4BE11-A



Xilinx Zynq UltraScale+

ZU4EG-1E FPGA
