TE0821-01-3BI21MA – stock available; order now!

MPSoC Module with AMD Zynq™ UltraScale+™ ZU3EG-1I, 2 GByte DDR4, 4 x 5 cm

We have 3 units of this Trenz Electronic module in stock now, so if you require some for a project, contact us soon!

The Trenz Electronic TE0821 is a powerful 4 x 5 cm MPSoC module integrated with an AMD Zynq UltraScale+ MPSoC. In addition, the module is equipped with 2x 1 GB DDR4 SDRAM chip, 4Gb up to 128 Gb eMMC chip,  2x 64 MB flash memory for configuration and data storage, as well as powerful switching power supplies for all required voltages. The module is equipped with a Lattice Mach XO2 CPLD for system control. 3x Robust high-speed connectors provide a large number of inputs and outputs.

The highly integrated modules are smaller than a credit card and are offered in several variants at an affordable price-performance ratio. Modules with a 4 x 5 cm form factor are completely mechanically and largely electrically compatible with each other.

All components cover at least the industrial temperature range. The temperature range in which the module can be used depends on the customer’s design and the selected cooling solution.

TE0821 TRM
BUY NOW

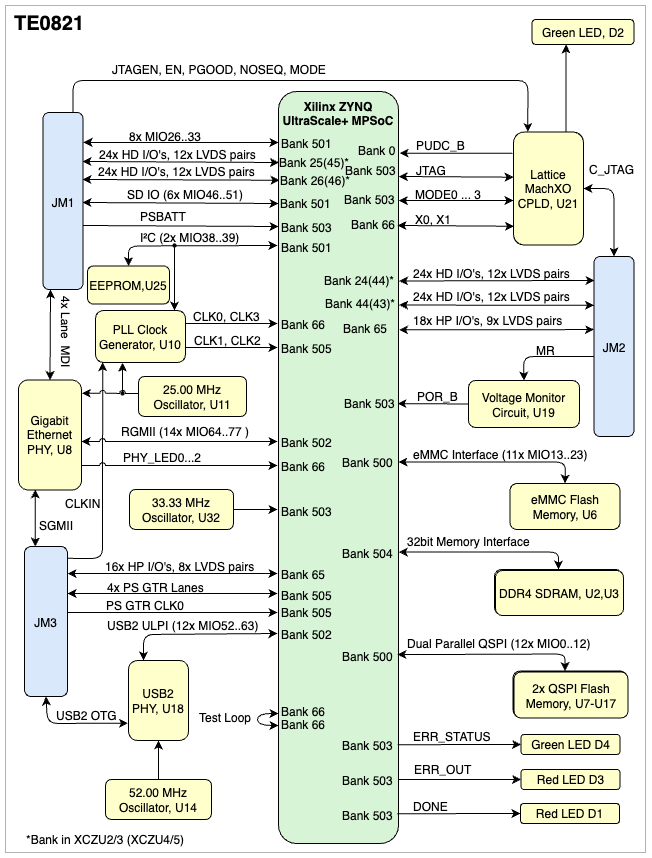

Features



  • SoC/FPGA
    • Package: SFVC784
    • Device: ZU2 …ZU5, *
    • Engine:  EG, CG, EV, *
    • Speed: -1, -1L, -2, -2L, 3, *, **
    • Temperature: I, E, *, **
  • RAM/Storage
    • 2x  DDR4 SDRAM,
      • Data Width: 16 Bit
      • Size: 8 Gb, *
      • Speed: 2400 Mbps, ***
    • 2x QSPI boot Flash in dual parallel mode
      • Data Width: 8 Bit
      • Size: 512 Mb Gb, *
    • 1x e.MMC Memory
      • Data Width: 16 Bit
      • Size: 8 Gb, *
    • MAC address serial EEPROM
  • Power
    • All power regulators on board
  • Dimension
    • 40 x 50 mm
  • On Board
    • Lattice MachXO2 CPLD
    • Programmable Clock Generator
    • Hi-speed USB2 ULPI Transceiver
    • 4x LEDS
  • Interface
    • 1 Gbps RGMII Ethernet interface
    • Hi-speed USB2 ULPI transceiver with full OTG support
    • Graphic Processor Mali-400 MP2, *
    • 156 x High Performance (HP) und 96 x High Density PL I/Os
    • 4 x serial PS GTR transceivers
      • PCI Express interface
      • SATA 3.1 interface
      • DisplayPort interface with video resolution up to 4k x 2k
      • 2x USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate

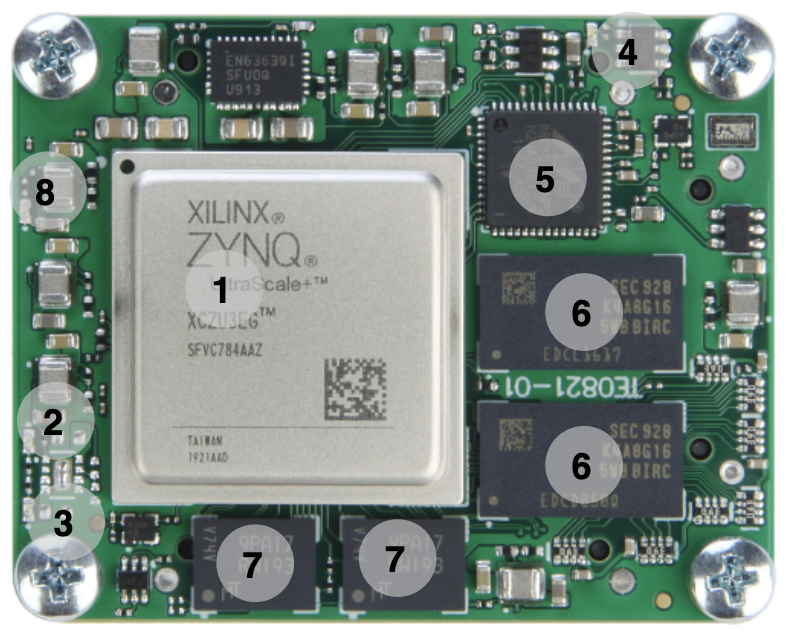

  1. Xilinx ZYNQ UltraScale+ MPSoC, U1
  2. Red LED (ERR_OUT), D3
  3. Green LED (ERR_STATUS), D4
  4. Red LED (DONE), D1
  5. 10/100/1000 Mbps Energy Efficient Ethernet Transceiver, U8
  6. 8Gb DDR4, U2-U3
  7. 512 Mbit QSPI flash memory, U7-U17
  8. Green User LED, D2

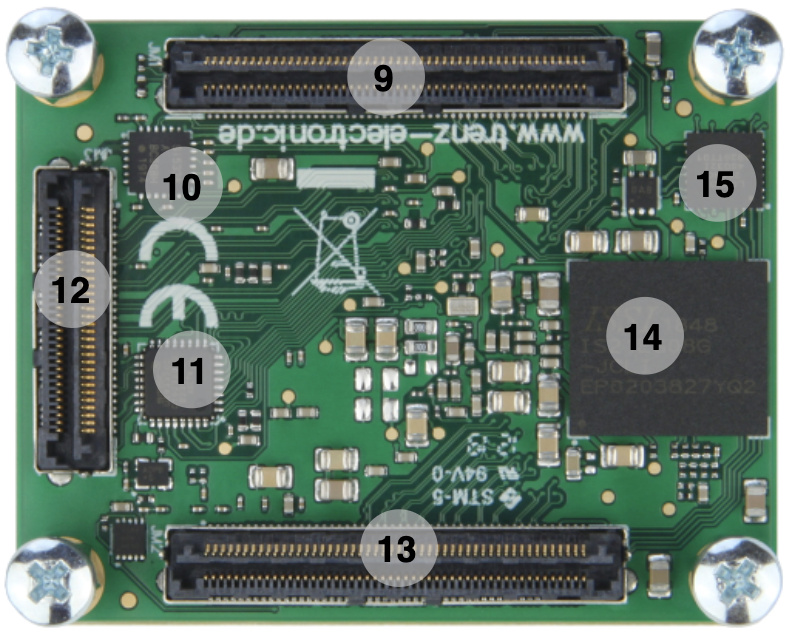

  9. B2B connector Samtec Razor Beam, JM1
  10. Programmable clock generator, U10
  11. USB2.0 Transceiver,  U18
  12. B2B connector Samtec Razor Beam, JM3
  13. B2B connector Samtec Razor Beam, JM2
  14. 8 GByte eMMC memory, U6
  15. Lattice Semiconductor MachXO2 System Controller CPLD, U21
