Trenz Electronic TE0865-02-FBE23MA coming soon

Biggest Zynq FPGA on the Smallest SoM!

MPSoC Module with Zynq UltraScale+ ZU19EG-1E, 4 GB DDR4 (PS), 4 GB DDR4 (PL)

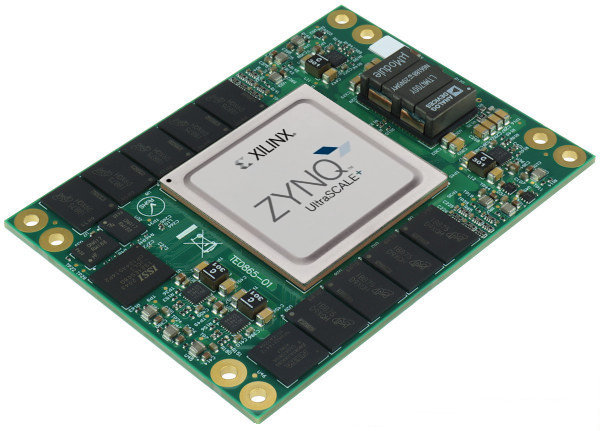

The Trenz Electronic TE0865-02-FBE23MA is a high-performance MPSoC module integrating a Xilinx Zynq UltraScale+ ZU19EG, 4 GByte DDR4 SDRAM with ECC on PS, 4 GByte DDR4 SDRAM on PL, 256 MByte Flash memory for configuration and operation, Gigabit Ethernet PHY, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution.

Download the full Trenz Electronic catalogue here.

Key Features

  • Xilinx Zynq UltraScale+ XCZU19EG-1FFVC1760E
  • ZU19EG, C1760 Pin Packages
  • Rugged for shock and high vibration
  • Graphics Processing Unit (GPU): Mali-400 MP2
  • Plug-on module with 4 x Samtec ADM6 board to board connectors
  • 4 GByte (64-bit) DDR4 SDRAM with ECC on PS
  • 4 GByte (64-bit) DDR4 SDRAM on PL
  • 256 MByte QSPI boot Flash
  • 8 GByte e.MMC
  • 1 x Gigabit Ethernet transceiver PHY
  • USB2.0 PHY
  • Total I/O: 370
  • Gigabit transceivers: 32 x GTH, 16 x GTY, 4 x GTR
  • EEPROM with MAC
  • System controller (Intel MAX 10)
  • All power supplies on board, 12V single supply
  • Evenly spread supply pins for good signal integrity
  • Dimensions: 7.5 x 10 cm form factor

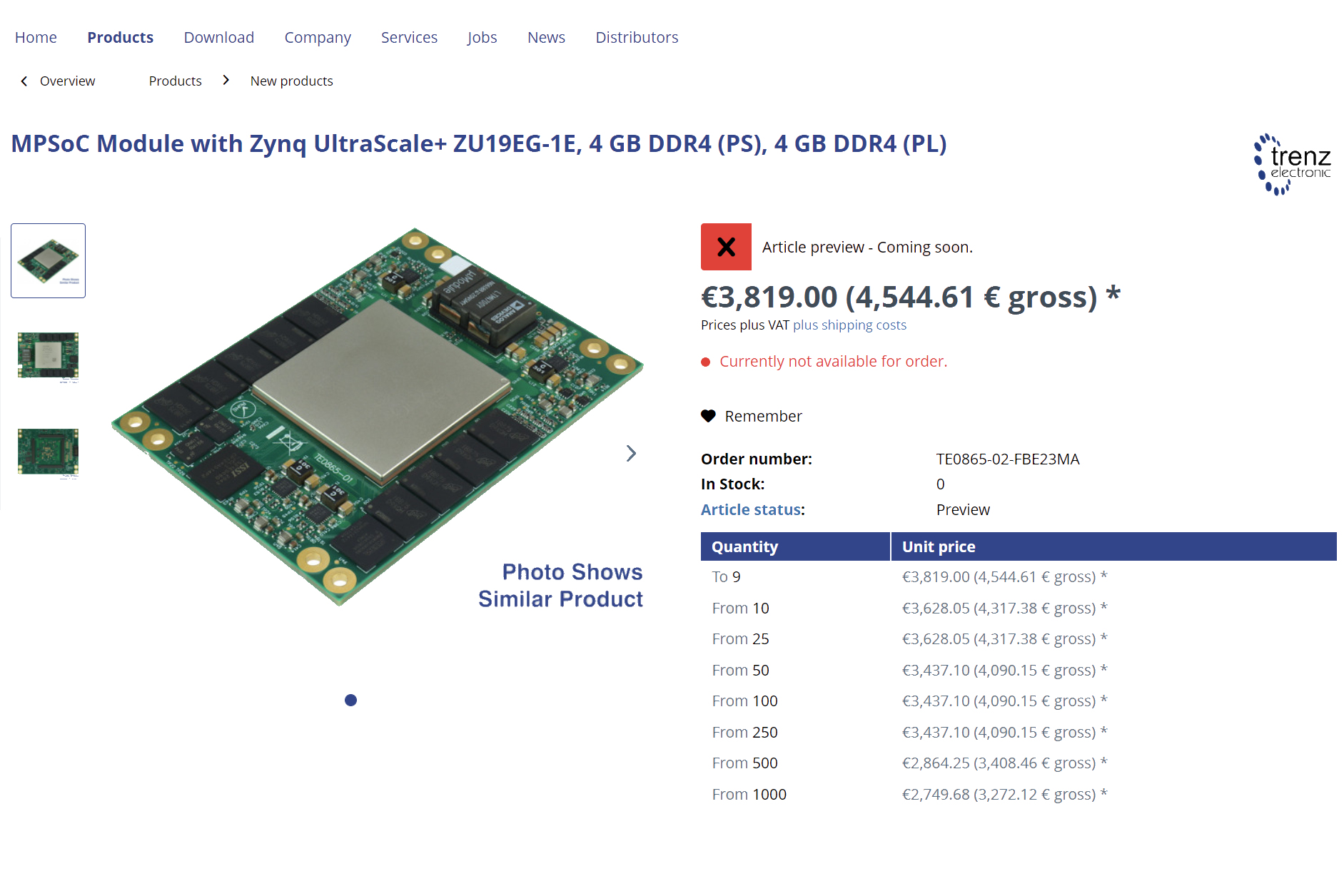

TE0865-02-FBE23MA on the Trenz Electronic website
