Trenz Electronic TEM0007-01-CHE11-A is in stock now.

Microchip PolarFire® MPFS250T-FCVG484E, 1 GByte LPDDR4 SDRAM, 64 MByte SPI Flash

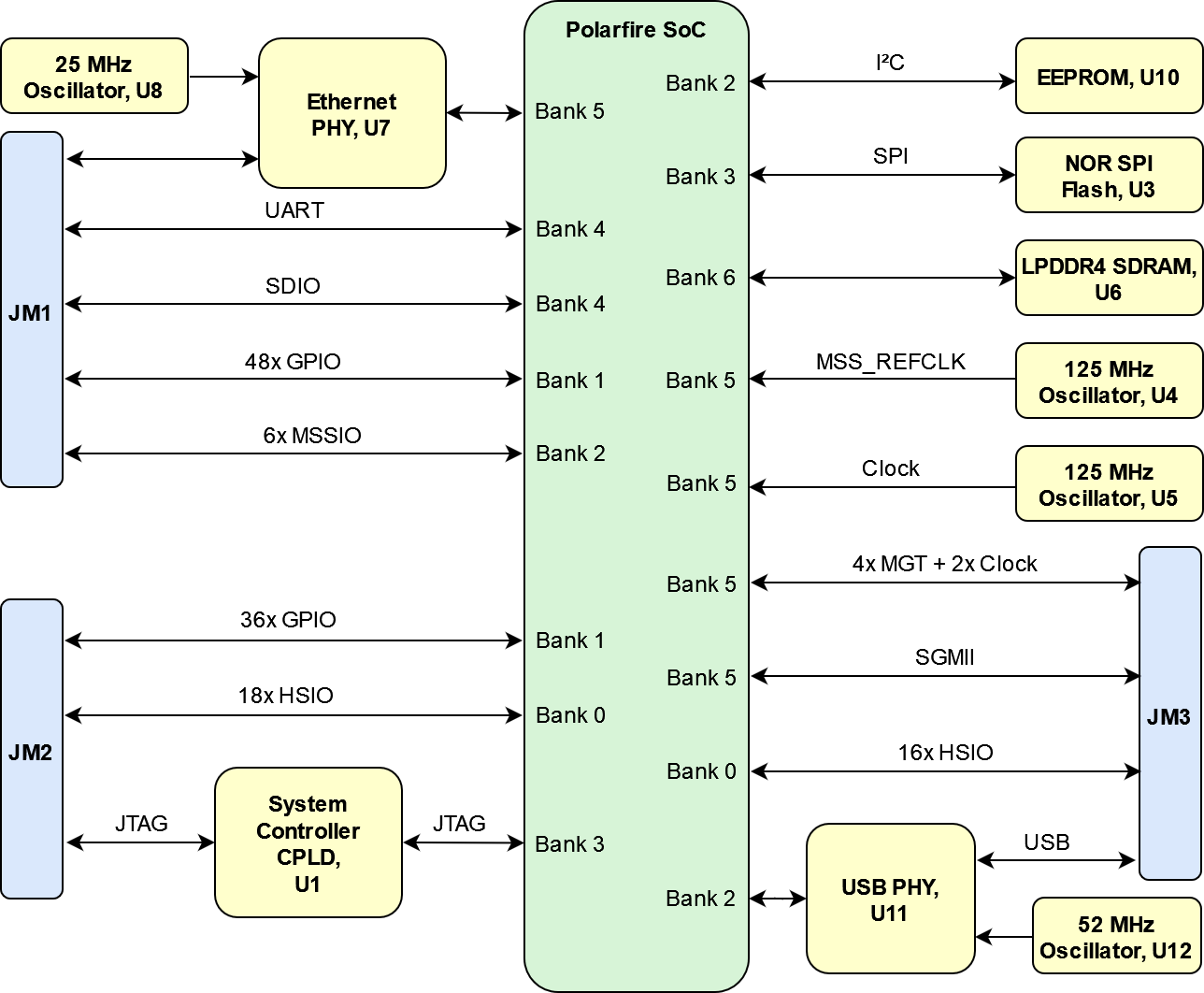

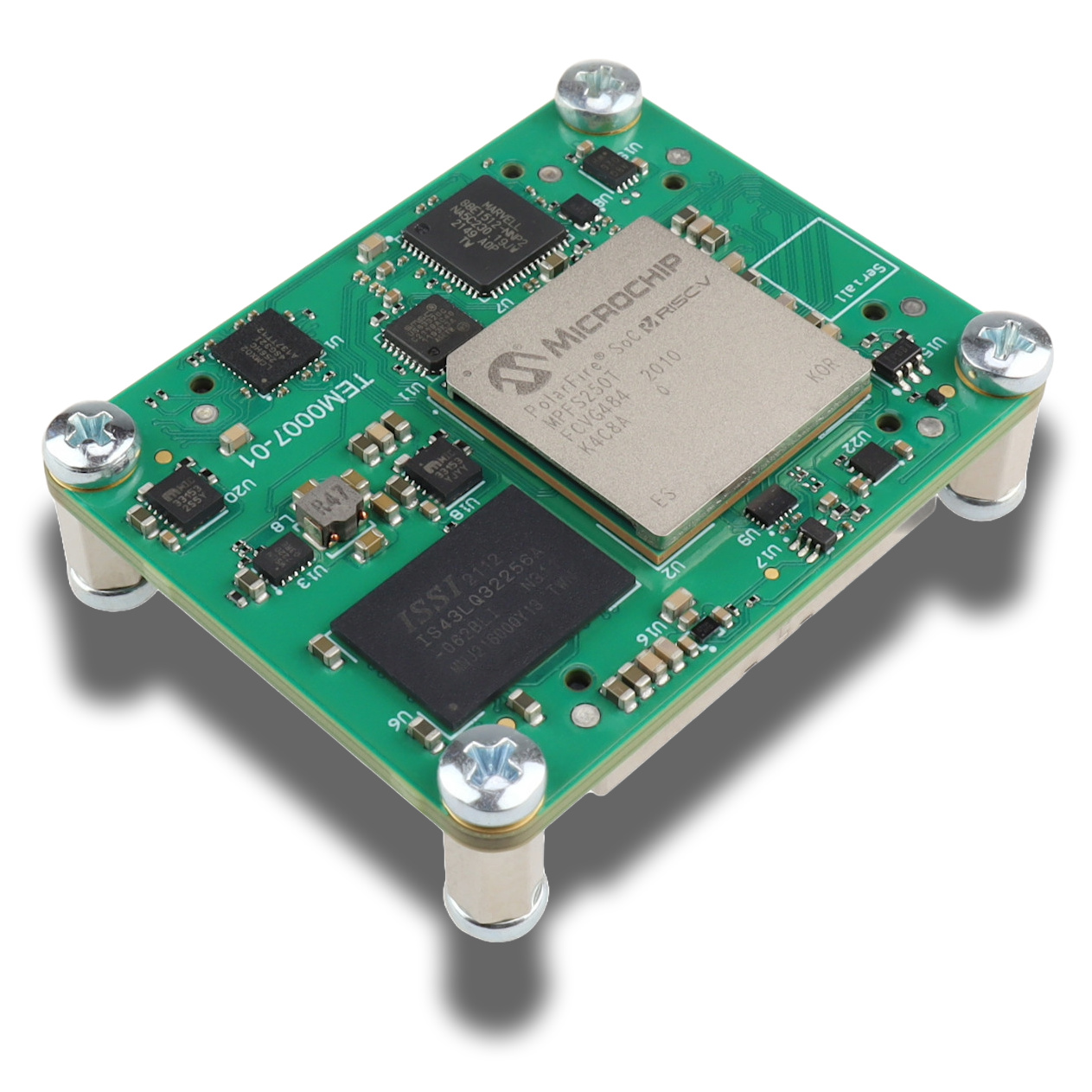

Trenz Electronic TEM0007 module is an industrial-grade FPGA micromodule integrating a Microsemi Polarfire SoC FPGA, Gigabit Ethernet PHY, USB 2.0 PHY, LPDDR4 SDRAM, SPI Flash memory for configuration and operation, and power supply. A large number of configurable I/Os is provided via robust board-to-board (B2B) connectors.

• SoC
  • Extended commercial-grade Microchip Polarfire® SoC MPFS250T-FCVG484E FPGA

• RAM/Storage
  • 1 GByte LPDDR4 SDRAM
  • 64 MByte SPI Flash Memory
  • Serial EEPROM with EUI-48 Node Identity

• On Board
  • System Controller CPLD
  • USB2.0 ULPI Transceiver
  • 10/100/1000 Mbps Gigabit Ethernet PHY
  • On-board DC-DC converter

• Interface
  • 3 x Samtec LSHM B2B connectors (2 x 100 Pins, 1 x 60 Pins)
  • 84 SE /42 diff GPIOs
  • 34 SE /14 diff HSIOs
  • 14 MSSIO
  • 4 Transceiver pairs

• Dimension
  • 4 x 5 cm
