AM0010-02-3BI21MA – Units in stock now.

MPSoC Module with AMD Zynq™ UltraScale+™ ZU3EG-1I, 4 GByte DDR4, 4 x 5,6 cm

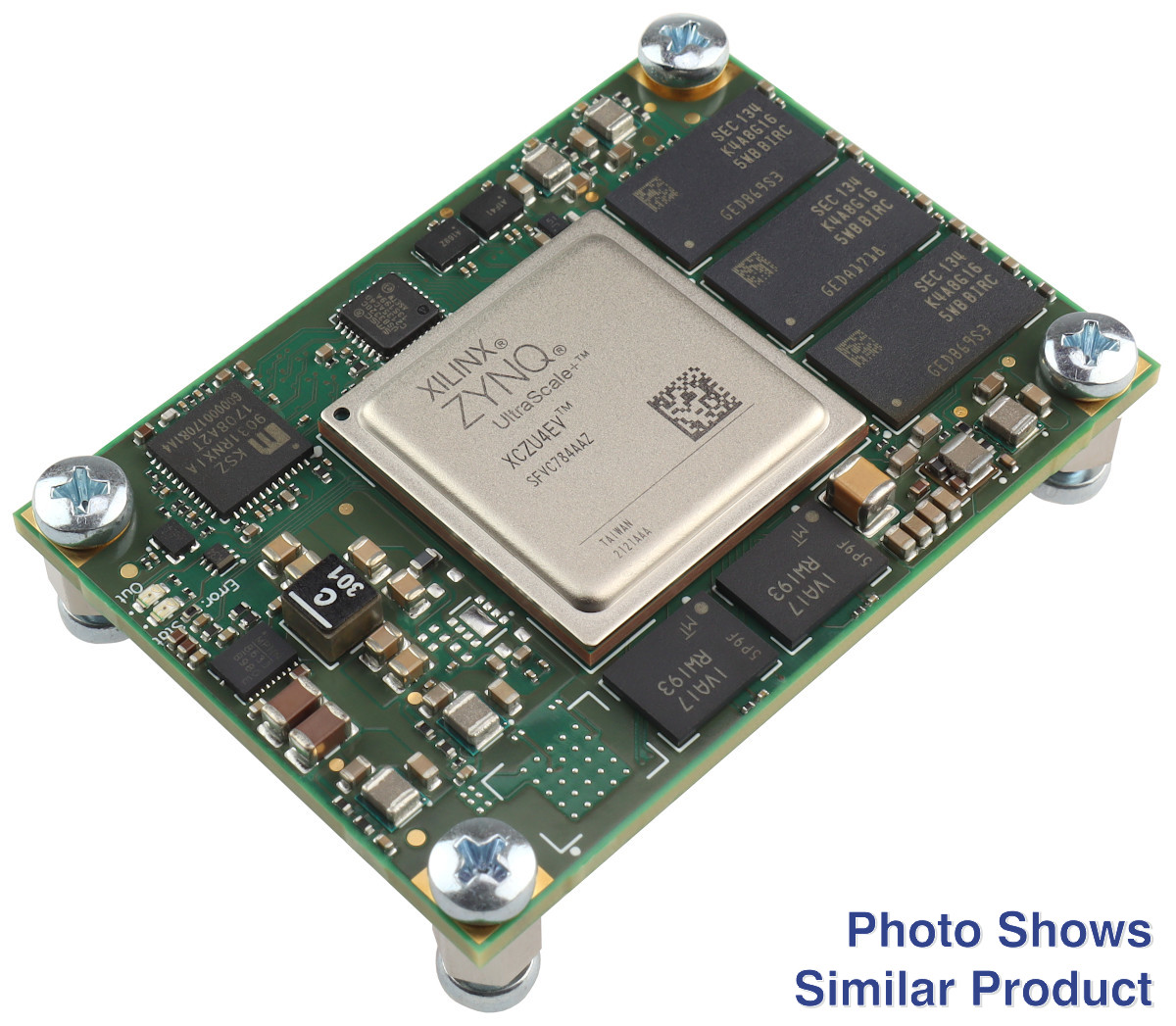

The Trenz Electronic AM0010-02-3BI21MA is an MPSoC module integrating an AMD Zynq™ UltraScale+™ ZU3EG, 4 GByte DDR4 SDRAM with ECC, 2 x 64 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 4 x 5.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least an industrial temperature range of -40°C to +85°C. The module operating temperature range depends on the customer’s design and cooling solution. Please contact us for options.

AM0010 Technical Resource Manual

Features

• SoC
  • Device: ZU3
  • Engine: EG
  • Speedgrade: -1
  • Temperature Range: Industrial
  • Package: SFVC784

• RAM/Storage
  • 4 GByte DDR4 SDRAM with ECC
  • 8 GByte e.MMC
  • 2 x 64 MByte Serial Flash
  • EEPROM with MAC address

• Dimension
  • 40 x 56,4 mm
