Our range of systems developed for the standard 32bit PCI interface.

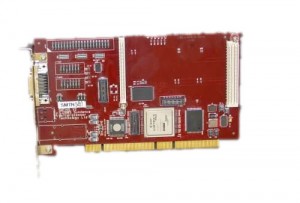

SMT145-VP7
NOT FOR NEW DESIGNS 64 Bit PCI Carrier The SMT145 is a single site TIM compatible carrier card, which uses a 64 bit PCI bus. The SMT145 has a Virtex-II Pro for the control of the Rocket I/Os, the onboard ZBTAM, the 5 status LEDs etc. The Virtex also implements the PCI interface The SMT145...
SMT145-VP7-FC
NOT FOR NEW DESIGNS 64 Bit PCI Carrier The SMT145 is a single site TIM compatible carrier card, which uses a 64 bit PCI bus. The SMT145 has a Virtex-II Pro for the control of the Rocket I/Os, the onboard ZBTAM, the 5 status LEDs etc. The Virtex also implements the PCI interface The SMT145...

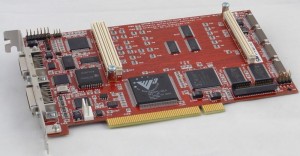

SMT310
Single-Site PCI Carrier; V3 PCI Chip-set; SDB and 1Mbyte of shared memory. The SMT310 is a single site module carrier developed to provide access to a TIM Module over the PCI bus running at 33MHz with a 32-bit data bus. The card has an "on-board" JTAG ACT8990 controller. This allows Code Composer Studio and 3L Diamond applications to be used...

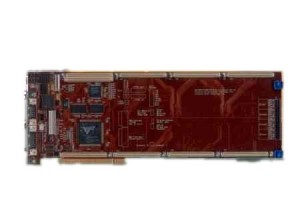

SMT310Q
PCI carrier with 4 module sites; V3 PCI Chip-set; SDB and 1Mbyte of shared memory on Master site. The SMT310Q is a quad (4) site module carrier developed to provide access to a TIM Modules over the PCI bus running at 33MHz with a 32-bit data bus. The card has an "on-board" JTAG ACT8990 controller. This allows Code...
