VF360 – In Stock Now

3U VPX FPGA-DSP PROCESSOR

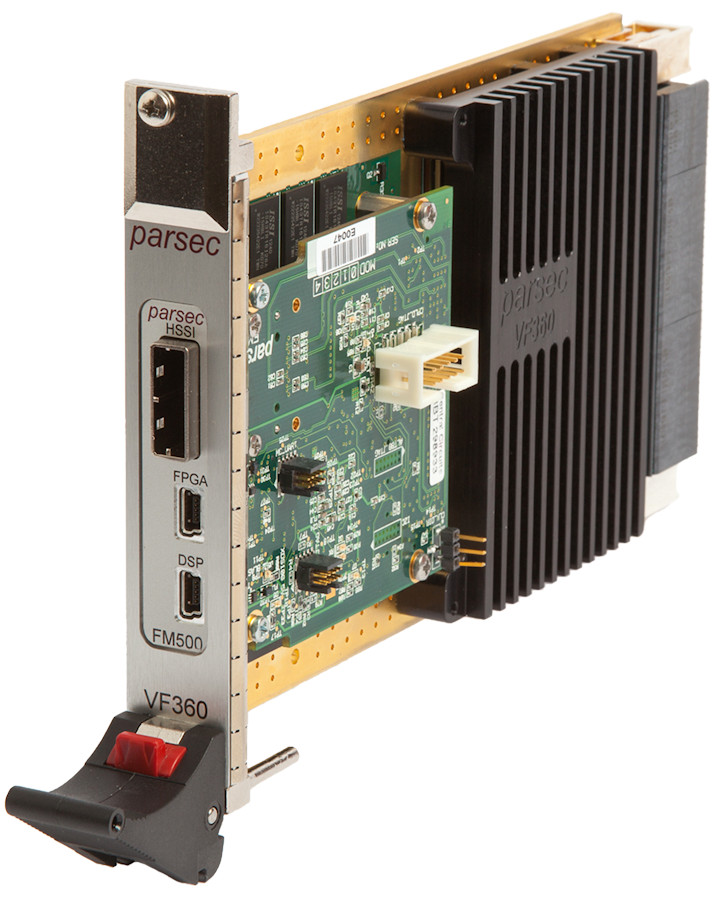

The VF360 is a 3U OpenVPX module that leverages on Intel Stratix® V FPGA and Texas Instruments KeyStone Multicore DSP technology to provide an ultra-high bandwidth processing platform, ideally suited for computation and bandwidth-intensive applications such as Radar, Networking, SIGINT, EW, SDR and Video.

The onboard multicore DSP from Texas Instruments provides the flexibility to perform complex post-processing functions more suited for the processor domain. High bandwidth communication between the DSP and FPGA is provided through both PCIe and Serial Rapid IO (SRIO) interfaces.

The Stratix® V FPGA has two banks of dedicated DDR3 and QDRII+ memories for algorithms with high bandwidth and/or large memory size requirements. High-speed serial interfaces to the OpenVPX data plane and the FMC site creates abundant FPGA IO throughput.

Talk to Etion Create at DSEI 2023 to discuss the VF360 and other solutions, H1-411.

Visit Sundance and Etion Create at DSEI, Hall 1 – 411

ExCeL, London on 12-15 September 2023.

KEY FEATURES

  • 3U OpenVPX Single Board Computer
  • C667x Keystone® Multicore DSP Processor
    • Up-to eight cores each running at 1.25 GHz
    • Fixed Point and Floating-Point operations
    • Up to 2GB DDR3L memory
  • Intel Stratix® V FPGA family
    • Up-to 2 GB DDR3L memory (dual banks)
    • Up-to 32 MB QDRII+ memory (dual banks)
    • Supports 40G Ethernet on backplane
  • VITA 57 FMC site for flexible IO options
  • High bandwidth IO throughput via backplane and FMC
  • Air- and rugged conduction-cooled options
  • Linux and SYSBIOS RTOS support
  • Ideal for Radar, EW, SIGINT, SDR and video applications
