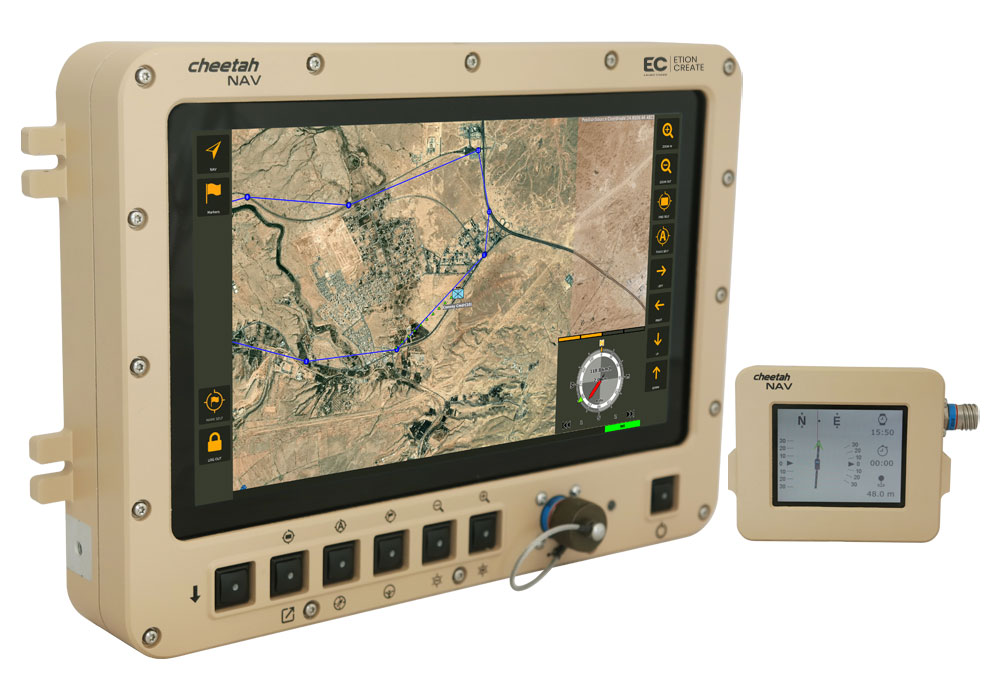

CheetahNAV is a versatile tactical navigation system designed for security services, emergency services and the light AllTerrain Vehicle (ATV) using user controlled offline navigation maps.

CheetahNAV is a field-proven, PNT-capable high precision GNSS-Aided Inertial Navigation System (INS) which utilises a tactical-grade, MEMS sensors based Inertial Measurement Unit (IMU); embedded, multi-constellation and multi frequency GNSS receiver and an Advanced Kalman Filter based algorithm, providing very accurate position information, navigation, time, velocity and orientation in GNSS-enabled and GNSS-denied environments.

An optional slave module is available for use in space constrained areas where specific information needs to be communicated to the driver.


  • Route planning functionality
  • Improved situational awareness
  • Enhanced mobility of vehicles
  • Real time tactical moving map
  • Arabic language pack
  • MIL-STD-2525B symbology
  • Touch screen display
  • Ruggedized design
  • Compact, MIL-STD qualified Inertial Navigation System (INS)
  • Embedded GNSS receiver
  • Tactical-grade IMU
  • Dead reckoning accuracy within 0.2% of distance travelled (DT)
  • Non-ITAR controlled
  • Technology Readiness Level 9


  • Command and control system integration
  • Multi-functional HD display sharing for other vehicle systems
  • Freeform messaging
  • Anti GNSS spoofing and jamming
  • Additional slave displays
  • External IP Video or SDI Video input processing option
